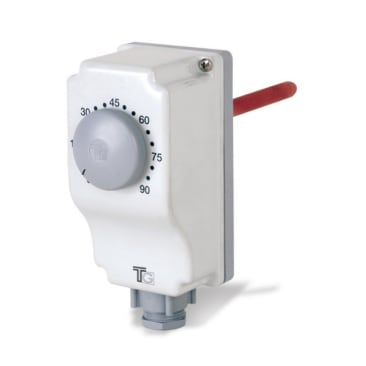

ALLIED 7P1-1R306 AQUASTAT IMMERSION THERMOSTAT
MFR Part #:Â 7P1-1R306
SKU #:Â 1162337
Brand:Â FantiniCosmi
UPC:Â 400006826305
FantiniCosmi 7P1-1R306 Encased Immersion Control Thermostat With External Knob Adjustment, SPDT Switch, Direct Mounting
CE 0497 Marked|ENEC 03/ISPESL Marked
Product Details
Attributes
Features
Resources
FantiniCosmi Encased Immersion Control Thermostat, Series: 7P1, SPDT Switch, Contact Rating: (16) 4 A, 250 VAC, Differential Temperature: 6 deg C, Temperature Settings: 0 to 90 deg C, Accuracy: +/-4 to 6 deg C, Direct Mounting
Accuracy:
+/-4 to 6 deg C
Contact Rating:
(16) 4 A, 250 VAC
Differential Temperature:
6 deg C
Mounting Type:
Direct
Series:
7P1
Switch Type:
SPDT
Temperature Settings:
0 to 90 deg C
- Immersion control thermostat for direct mounting
- 85 deg C control head temperature limit
- 120 deg C max tolerance temperature of the sensitive element
- 1B-type of action
- Insulation class I
- Overvoltage category II
- 4 kV rated impulse voltage
- Minimum use heat-resistant cables temperature is 140 deg C
- Device earthing with screw terminals
- Type 2 degree of pollution
- Use with water heaters
Product Details
FantiniCosmi Encased Immersion Control Thermostat, Series: 7P1, SPDT Switch, Contact Rating: (16) 4 A, 250 VAC, Differential Temperature: 6 deg C, Temperature Settings: 0 to 90 deg C, Accuracy: +/-4 to 6 deg C, Direct Mounting
Attributes
Accuracy:Â +/-4 to 6 deg C
Contact Rating:Â (16) 4 A, 250 VAC
Differential Temperature:Â 6 deg C
Mounting Type:Â Direct
Series:Â 7P1
Switch Type:Â SPDT
Temperature Settings:Â 0 to 90 deg C
Features
- Immersion control thermostat for direct mounting
- 85 deg C control head temperature limit
- 120 deg C max tolerance temperature of the sensitive element
- 1B-type of action
- Insulation class I
- Overvoltage category II
- 4 kV rated impulse voltage
- Minimum use heat-resistant cables temperature is 140 deg C
- Device earthing with screw terminals
- Type 2 degree of pollution
- Use with water heaters
