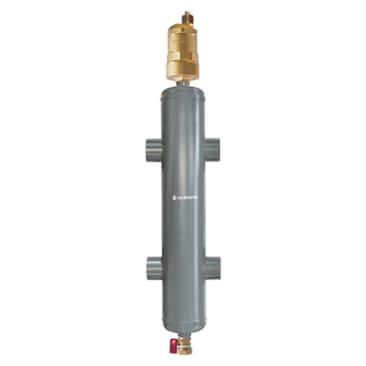

CALEFACTIO CB125 CALBALANCE 1-1/4IN HYDRAULIC SEPERATOR
Product Details
Attributes
Features
Resources
Calefactio Hydraulic Separator, Calbalance Series, 1-1/4 in Nominal, FNPT Connection, 150 psi, 212 deg F, Suitable Media: Glycol, Water, 50 % Maximum Percentage of Glycol, 18 gpm Flow Rate, Steel, Zinc-Plated, 3-1/2 in Dia x 28 in H
Hydraulic separators are used to isolate primary circuits (boiler) from secondary circuits (application/heat transmitter) as much for flow than for charge loss. The size of hydraulic separators should be determined by the maximal inlet flow. The information used must be the highest, no matter if it's from the primary or secondary circuit.
- Equipped with CV050 calvent automatic air vent
- Separate air and dirt
- Offered with drain valve
- Provided with wall bracket
- Adapted fluids water and glycol solutions at 50%
- 1/2 in FNPT thermometer port
- Eliminate the need to install automatic air vent and air and dirt separator
- Simple to install
- Easy maintenance
- Minimize energy consumption because the pumps will only work for the required zones
Product Details
Calefactio Hydraulic Separator, Calbalance Series, 1-1/4 in Nominal, FNPT Connection, 150 psi, 212 deg F, Suitable Media: Glycol, Water, 50 % Maximum Percentage of Glycol, 18 gpm Flow Rate, Steel, Zinc-Plated, 3-1/2 in Dia x 28 in H
Hydraulic separators are used to isolate primary circuits (boiler) from secondary circuits (application/heat transmitter) as much for flow than for charge loss. The size of hydraulic separators should be determined by the maximal inlet flow. The information used must be the highest, no matter if it's from the primary or secondary circuit.
Attributes
Features
- Equipped with CV050 calvent automatic air vent
- Separate air and dirt
- Offered with drain valve
- Provided with wall bracket
- Adapted fluids water and glycol solutions at 50%
- 1/2 in FNPT thermometer port
- Eliminate the need to install automatic air vent and air and dirt separator
- Simple to install
- Easy maintenance
- Minimize energy consumption because the pumps will only work for the required zones
