CALEFACTIO PF034P PUMP FLANGE VLV PRESS 3/4 2PC
Product Details
Attributes
Features
Resources

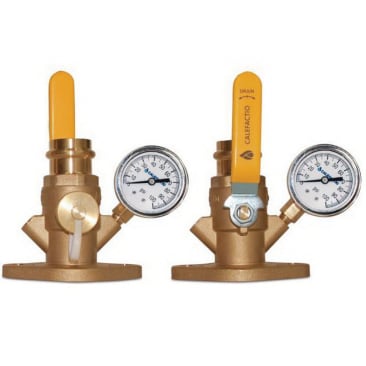

Calefactio Pump Flange Valve, 3/4 in Nominal, 0 to 100 psi, Brass
The ΔP Valve is the only one to be equipped with gage ports. The pressure differential in psi, also know as ΔP (Delta P), is obtained by taking the readings of the gauge on each side of the pump. The pump curves demonstrate the ΔP in head loss. In order to convert the readings of the gage in head loss, multiply the ΔP by 2.3.
- Full port brass ball valve
- Rotating flange
- Gauge ports on each side and drain on one side
- Ball valve isolation for circulating pumps
- Blowout-proof stem, packing gland and O-ring stem seal
- Forged brass body
- 500 cwp (cold working pressure)
- Saves time and money while reducing the number of joints because of the integrated functions (drain and gage ports, ball valve)
- Allows to drain before or after the pump
- Fits all high-velocity pumps
