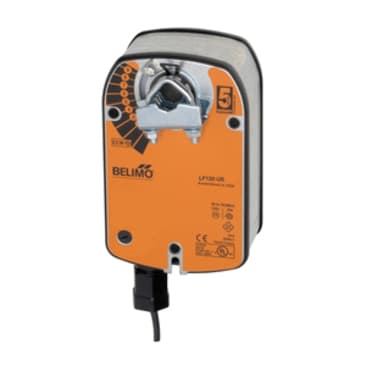

BELIMO LF120 US 120V SPRING RETURN DAMPER ACTUATOR
Product Details
Attributes
Features
Resources
BELIMO® Spring Return Damper Actuator, Series: LF, 120 VAC, 50/60 Hz, 7.5 VA, Electrical Connection: 18 AWG Appliance or Plenum Cable with 1/2 in Conduit Connector, 3 ft, Timing Range: 25 s, 75 s, Steel, Galvanized, 35 in-lb Torque, Noise Level: 50 dB, 62 dB, -22 to 122 deg F, IP54, NEMA 2 Enclosure, Humidity Rating: 95 %, 7.66 in W x 3.86 in H x 3.23 in D, Configuration: SPDT, Control Type: On/Off, Direct Mounting, Power Consumption: 3.5 W, 5.5 W, Rotation Angle: 95 deg, Round Shaft, Shaft Rotation: CCW, CW, 3/8 to 1/2 in Shaft
- Maintenance-free servicing
- Mechanical position indication
- The LF Series actuators provide true spring return operation for reliable fail-safe application and positive close off on air tight dampers
- The spring return system provides constant torque to the damper with and without, power applied to the actuator
- The LF Series provides 95 deg of rotation and is provided with a graduated position indicator showing 0 to 95 deg
- The actuator may be stalled anywhere in its normal rotation without the need of mechanical end switches
- Power consumption is reduced in holding mode
- Selectable with switch 0/1 direction of motion motor
- The actuator is double insulated so an electrical ground connection is not necessary
