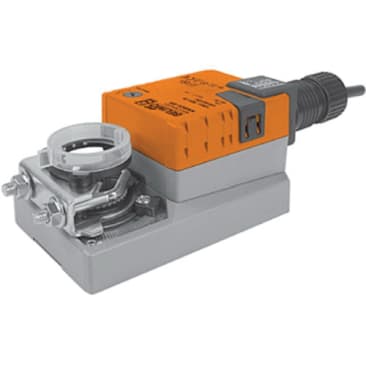

BELIMO NMB24-SR NON-SPRING RETURN ACTUATOR
Product Details
Attributes
Features
Resources
BELIMO® Damper Actuator, 0.5 mA, 24 VAC/VDC, 2 - 10 VDC Control, 50/60 Hz, 2.5 W Running, 0.4 W Holding, 5 V-A VA, 18 AWG Plenum Rated Cable with 1/2 in Conduit Electrical Connection, 95 sec Constant, Independent of Load Motor Running Timing, 10 N-m Torque, 100 kohm, 500 ohm Input, -30 to 50 deg C Ambient, -40 to 80 deg C Storage, NEMA 2, IP54 Enclosure, 5 - 95% RH Non-Condensing Humidity, 6.88 in L x 3.15 in W, Modulating, Proportional Control Signal, Direct Coupled Mounting
- Electronic throughout 0 - 95 deg rotation overload protection, maximum 95 deg adjustable with mechanical stop angle of rotation
- Reversible with built-in switch motor direction of rotation
- Reflective visual indicator (snap-on) position indication
- External push button manual override
- Brushless DC motor for added accuracy and controllability
- Check damper position with clear position indicator
- Enjoy added flexibility with easy mechanical stops to adjust angle of rotation
- Easily accessible manual override button helps you pre-tension damper blades
- Auxiliary switch and feedback potentiometer add-ons-mount directly on clamp
- Added flexibility to select clamp, electrical connection, and running time
