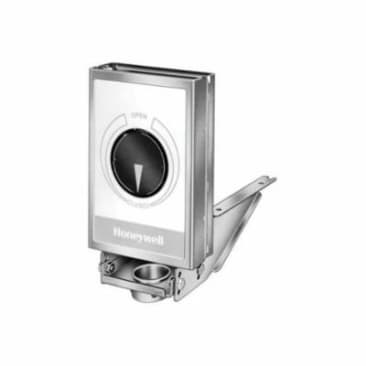

HONEYWELL Q5001D1000/U Image 1

HONEYWELL Q5001D1000 MOTOR VALVE LINKAGE(Q601E1000)

MFR Part #: Q5001D1000/U
SKU #: 0480532
Brand: Honeywell
UPC: 085267069670
Honeywell Q5001D1000/U Valve Linkage
1-3/8 in Valve Bracket and Anti Spin Clip

Honeywell Valve Linkage, Accessory Type: Valve Linkage, For Use with: Modutrol III, IV Motor and V5011 or V5013 Valve, 5-13/16 in W x 10-1/2 in H, Domestic

The Q5001 Valve Linkage connects a Modutrol® Motor to a 2- or 3-way valve. It is used primarily on V5011 or V5013 steam and water valves.

Product Details

Honeywell Valve Linkage, Accessory Type: Valve Linkage, For Use with: Modutrol III, IV Motor and V5011 or V5013 Valve, 5-13/16 in W x 10-1/2 in H, Domestic

The Q5001 Valve Linkage connects a Modutrol® Motor to a 2- or 3-way valve. It is used primarily on V5011 or V5013 steam and water valves.

Attributes

Country Of Origin: US
Domestic/Import: Domestic

Features

  • Q5001 valve linkage is applicable to 2-Way or 3-Way valves in modulating or two-position service
  • Linkage requires no adjustment when Use with Honeywell valves and Modutrol IV™ Motors
  • Q5001 Valve Linkage replaces Q601 and Q618 Valve Linkages
  • Linkage mounts directly to the valve bonnet, motor mounts to linkage bracket
  • Easy-to-read position indicator
  • Valve stem lift height cam selectable
  • Over travel permits tight close-off without excessive motor strain
  • Reversible cams on the Q5001 allow field selection of normally open or normally closed valve operation
  • All models have anti-spin clips
  • -40 to 150 deg F ambient temperature
  • 80 or 160 lbf stem force rating
  • 1-3/8 in bonnet
  • 3/4 in stroke
