LEVITON 49605-28P 28 WIRELESS MEDIA ENCLOSURE WITH VENTED DOOR
Product Details
Attributes
Features
Resources

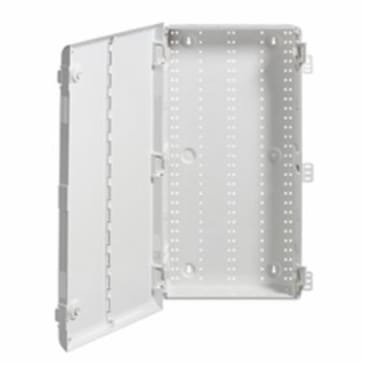

Leviton® Structured Media Enclosure, Wireless, 3.73 in Length, 17 in Width, 28.53 in Height, For Use With: Leviton® Connected Home Patch Panels, Voice, Data, Video and Audio Distribution Modules, Flush/Surface Mounting, Plastic, White
The enclosure shall be molded from UL rated ABS flame retardant polymer. The enclosure shall be suitable for new construction or retrofit installations and shall allow for flush mounting on standard 16 in on center studs with four wood screws (not provided) or for surface mounting on a variety of surfaces capable of supporting the enclosure and contents. The enclosure shall include multiple removable knockouts on the top and bottom to support conduit fittings and to facilitate cable routing and entry. The enclosure shall accept all Leviton® Structured Media™ panels, modules, brackets and mounting plates. The enclosure shall allow for installation of two single gang j-boxes or a full size Leviton® power module. Optional vented covers and vented hinged doors shall be available to promote airflow into the enclosure. The enclosure design shall allow hinged doors to open from the left or right and provide for toolless door installation. Optional door locks shall be available. An optional trim ring shall be available to cover drywall cut irregularities and to retrofit a plastic vented hinged door to an existing metal enclosure, allowing for greater RF transparency.
- Uses ABS polymer construction to permit the full reach of wireless signals by diminishing the effect of interference
- 180 deg hinged door allows for quick and easy access to network equipment
- Makes servicing and expansion easy with (7) 1 in and (3) 2 in knockouts and additional 1 in nested knockouts
- Assures safety with ABS flame retardant polymer
- Vented door assists in airflow for cooling active gear
- Ratcheting hinge and latch system creates fast, tool-free door installations and helps accommodate for wall imperfections
- Existing metal enclosure can be retrofitted for RF transparency by using trim ring accessory (49605-42T) and door (49605-42S)
- Structured media centers provide an excellent termination and mounting location
- Allows the full reach of a wireless network, as opposed to standard metal enclosures that can limit the range of a wireless signal
Product Details
Leviton® Structured Media Enclosure, Wireless, 3.73 in Length, 17 in Width, 28.53 in Height, For Use With: Leviton® Connected Home Patch Panels, Voice, Data, Video and Audio Distribution Modules, Flush/Surface Mounting, Plastic, White
The enclosure shall be molded from UL rated ABS flame retardant polymer. The enclosure shall be suitable for new construction or retrofit installations and shall allow for flush mounting on standard 16 in on center studs with four wood screws (not provided) or for surface mounting on a variety of surfaces capable of supporting the enclosure and contents. The enclosure shall include multiple removable knockouts on the top and bottom to support conduit fittings and to facilitate cable routing and entry. The enclosure shall accept all Leviton® Structured Media™ panels, modules, brackets and mounting plates. The enclosure shall allow for installation of two single gang j-boxes or a full size Leviton® power module. Optional vented covers and vented hinged doors shall be available to promote airflow into the enclosure. The enclosure design shall allow hinged doors to open from the left or right and provide for toolless door installation. Optional door locks shall be available. An optional trim ring shall be available to cover drywall cut irregularities and to retrofit a plastic vented hinged door to an existing metal enclosure, allowing for greater RF transparency.
Attributes
Features
- Uses ABS polymer construction to permit the full reach of wireless signals by diminishing the effect of interference
- 180 deg hinged door allows for quick and easy access to network equipment
- Makes servicing and expansion easy with (7) 1 in and (3) 2 in knockouts and additional 1 in nested knockouts
- Assures safety with ABS flame retardant polymer
- Vented door assists in airflow for cooling active gear
- Ratcheting hinge and latch system creates fast, tool-free door installations and helps accommodate for wall imperfections
- Existing metal enclosure can be retrofitted for RF transparency by using trim ring accessory (49605-42T) and door (49605-42S)
- Structured media centers provide an excellent termination and mounting location
- Allows the full reach of a wireless network, as opposed to standard metal enclosures that can limit the range of a wireless signal
