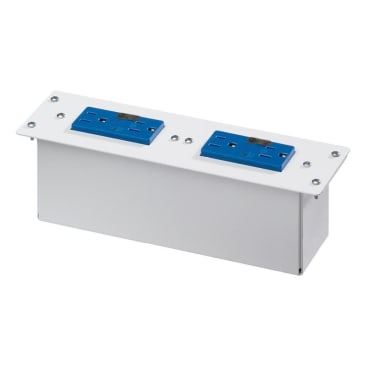

LEVITON 47605-DP AC POWER SURGE MODULE WHITE
Product Details
Attributes
Features
Resources
Leviton® AC Power Surge Protective Module, Dual, 120 VAC, 15 A, Powder Coated Steel, 2.3 in L x 2.8 in W x 10 in H
This AC dual power module with surge suppression provides power to voice, video, audio, and data distribution modules routers, switches, modems, audio distribution modules, and security modules mounted inside a Leviton Structured Media® Center enclosure. Equipped with TVSS (Transient Voltage Surge Suppression) outlets, the AC Power Module provides protection from transient voltage surges, and is intended for use where sensitive equipment would benefit from protection against the damage caused by such surges. A green indicator light on the face of the unit, when continuously lit, indicates surge protection is in effect. When the indicator light is off, the receptacle is no longer providing suppression. When protection is lost, an audible alarm will beep continuously. This power supply easily drops into a cutout in the bottom of the Structured Media Center. This design allows you to install the power required without taking up valuable space inside the enclosure.
- 120 VAC power module for Leviton® 14 in, 21 in, 28 in and 42 in structured media centers
- Two 15 A duplex receptacles
- Enough to power four pieces of active equipment - like a service provider modem or Leviton® router or switch - in your Structured Media enclosure
- In excessive power surges, a built-in audible alarm sounds to warn the user that power is now unprotected
- Two cable knock-outs on bottom for power service connections
- Safety clips protect outlets against dust, dirt and debris
- Provides optimum protection and EMI/RFI filtering that meets UL 1449 standards
- 280 and 420 series compatibility
- 5-15R NEMA
- Max surge current L-N of 24kA
- Noise rejection of -30dB at 500kHz-30MHz
- UL1449 impulse 6kV/500A L-G of 400V
- Diagnostics indicator light and audible alarm
- (4) outlets
Product Details
Leviton® AC Power Surge Protective Module, Dual, 120 VAC, 15 A, Powder Coated Steel, 2.3 in L x 2.8 in W x 10 in H
This AC dual power module with surge suppression provides power to voice, video, audio, and data distribution modules routers, switches, modems, audio distribution modules, and security modules mounted inside a Leviton Structured Media® Center enclosure. Equipped with TVSS (Transient Voltage Surge Suppression) outlets, the AC Power Module provides protection from transient voltage surges, and is intended for use where sensitive equipment would benefit from protection against the damage caused by such surges. A green indicator light on the face of the unit, when continuously lit, indicates surge protection is in effect. When the indicator light is off, the receptacle is no longer providing suppression. When protection is lost, an audible alarm will beep continuously. This power supply easily drops into a cutout in the bottom of the Structured Media Center. This design allows you to install the power required without taking up valuable space inside the enclosure.
Attributes
Features
- 120 VAC power module for Leviton® 14 in, 21 in, 28 in and 42 in structured media centers
- Two 15 A duplex receptacles
- Enough to power four pieces of active equipment - like a service provider modem or Leviton® router or switch - in your Structured Media enclosure
- In excessive power surges, a built-in audible alarm sounds to warn the user that power is now unprotected
- Two cable knock-outs on bottom for power service connections
- Safety clips protect outlets against dust, dirt and debris
- Provides optimum protection and EMI/RFI filtering that meets UL 1449 standards
- 280 and 420 series compatibility
- 5-15R NEMA
- Max surge current L-N of 24kA
- Noise rejection of -30dB at 500kHz-30MHz
- UL1449 impulse 6kV/500A L-G of 400V
- Diagnostics indicator light and audible alarm
- (4) outlets
