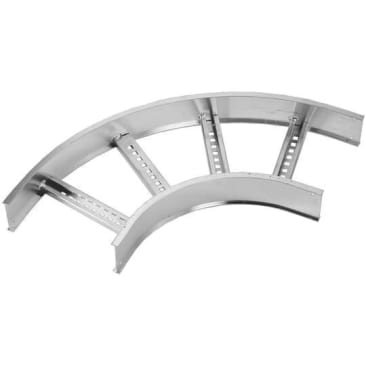

ABB AUF406LHB9024 AL 6WX4D HORIZ 90 LADDER TRAY
MFR Part #:Â AUF406LHB9024
SKU #:Â 1245239
Brand:Â ABB
UPC:Â 626490619739
Cable Tray AUF406LHB9024 U-Style Horizontal Bend, 6 in W Tray, 90 deg, 24 in Bend Radius, Ladder Bottom, Aluminum
Airports, Automotive Plants, Casinos, Food Processing, Hospitals, Manufacturing, Mining, Office Buildings, Paper Plants, Petrochemical Plants, Power Plants, Refineries, Schools and Stadiums
UL Listed | CSA Certified | NEC Approved
Product Details
Attributes
Features
Resources
Cable Tray Horizontal Bend, U-Style, 6 in Tray Width, 90 deg Angle, 24 in Bend Radius, 4 in Height, Ladder Bottom, Aluminum
Country Of Origin:
Canada
Angle:
90 deg
Bend Radius:
24 in
Bottom Type:
Ladder
Height:
4 in
Material:
Aluminum
Tray Width:
6 in
Type:
U-Style
- Snap-in splice plate connection
- Reverse position of every other rung for bottom or top mounting of cable ties
- Versatile continuous open slot rungs (strut profile)
- Extra wide rung design
- Four bolt connection
- 1.5 safety factor, all tray sections will support an additional 200 lb concentrated load on any portion of tray (side rail, rung) above and beyond published load class
- Easy to install
- Occupies less space in areas where space is restrained
- Easy to align straights
- Splice plate holds components together while hardware is inserted
- Lighter fittings are easy to handle
- Functional design
- Tangents on fittings
- 7 in length snap-in splice plate
Product Details
Cable Tray Horizontal Bend, U-Style, 6 in Tray Width, 90 deg Angle, 24 in Bend Radius, 4 in Height, Ladder Bottom, Aluminum
Attributes
Country Of Origin:Â Canada
Angle:Â 90 deg
Bend Radius:Â 24 in
Bottom Type:Â Ladder
Height:Â 4 in
Material:Â Aluminum
Tray Width:Â 6 in
Type:Â U-Style
Features
- Snap-in splice plate connection
- Reverse position of every other rung for bottom or top mounting of cable ties
- Versatile continuous open slot rungs (strut profile)
- Extra wide rung design
- Four bolt connection
- 1.5 safety factor, all tray sections will support an additional 200 lb concentrated load on any portion of tray (side rail, rung) above and beyond published load class
- Easy to install
- Occupies less space in areas where space is restrained
- Easy to align straights
- Splice plate holds components together while hardware is inserted
- Lighter fittings are easy to handle
- Functional design
- Tangents on fittings
- 7 in length snap-in splice plate
