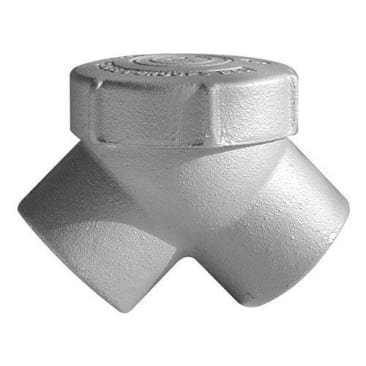

APPLETON ELBY75A Image 1

APPLETON ELBY75A 3/4 CAPPED ELBOW

MFR Part #: ELBY75A
SKU #: 1267324
Brand: Appleton®
UPC: 781381621977
Appleton® UNILETS® ELBY75A Dust-Ignitionproof Explosionproof Capped Raintight Conduit Elbow, 3/4 in Trade, 90 deg, Aluminum, Epoxy Powder Coated
Limited
UL 886, UL File No. E10444 | CSA C22.2 No. 30 | CSA 065181, Class 1, Div 1 and 2, Groups C, D, Class II, Div 1 and 2, Groups E, F, G Class III

Appleton® UNILETS® Conduit Elbow, Dust-Ignitionproof Explosionproof Capped Raintight, Series: ELBY, 3/4 in, 90 deg, For Use With: IMC/Threaded Rigid Metallic Conduit, Aluminum, Epoxy Powder Coated, 2.88 in L

Appleton® Group supplies conduit outlet boxes, pulling elbows and fittings to meet a wide range of classified location requirements. Most are available in a choice of triple coated malleable iron or epoxy powder-coated aluminum, providing exceptional durability and corrosion-resistance. We offer fittings with hub sizes from 1/2 in through 4 in, with designs that facilitate pulling of even heavy, difficult to bend conductors.

Product Details

Appleton® UNILETS® Conduit Elbow, Dust-Ignitionproof Explosionproof Capped Raintight, Series: ELBY, 3/4 in, 90 deg, For Use With: IMC/Threaded Rigid Metallic Conduit, Aluminum, Epoxy Powder Coated, 2.88 in L

Appleton® Group supplies conduit outlet boxes, pulling elbows and fittings to meet a wide range of classified location requirements. Most are available in a choice of triple coated malleable iron or epoxy powder-coated aluminum, providing exceptional durability and corrosion-resistance. We offer fittings with hub sizes from 1/2 in through 4 in, with designs that facilitate pulling of even heavy, difficult to bend conductors.

Attributes

Country Of Origin: Mexico
Material: Aluminum
Angle: 90 deg
Dimensions: 2.88 in L
Finish: Epoxy Powder Coated
Series: ELBY
Suitable For Use With: IMC/Threaded Rigid Metallic Conduit
Trade Size: 3/4 in
Type: Dust-Ignitionproof Explosionproof Capped Raintight

Features

  • Serves as pulling fitting
  • Makes 90 deg bend in conduit runs
  • Built in rollers to facilitate cable pulling
  • Permits easy access to pulling conductors
  • Screw on cover for ease of installation and removal
  • Cover opens on an angle permitting conductors to be pulled straight through either hub
  • Can make 90 deg turns in conduit where a compact turn is desired
  • Female tapered threaded hubs (NPT) for rigid conduit and IMC
