ABB THQL2115 Image 1

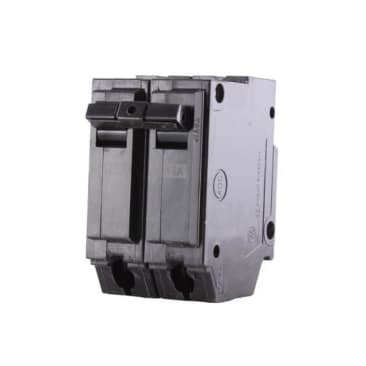

ABB THQL2115 THQL 2 POLE 120/240V 10K IC 15 AMP

MFR Part #: THQL2115
SKU #: 1134964
Brand: ABB | GE Industrial Solutions
UPC: 783164012903
GE Q-Line® THQL2115 Type THQL Miniature Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 2 Poles, LI/Non-Interchangeable Thermal Magnetic Trip
Load Centers, Lighting Panels, Thermal Magnetic, Electrical Distribution and Control Applications
GSA Compliant|UL File No. E11592|HACR Rated

GE Q-Line® Miniature Circuit Breaker, Type THQL, 120/240 VAC, 15 A, 10 kA Interrupt, Q-Line Frame, LI/Non-Interchangeable Thermal Magnetic Trip, 2 Pole, 1 ph, 14 to 8 AWG Wire, Plug-In Mounting, 60/75 deg C, 2-3/8 in L x 2 in W x 3-9/32 in H Dimensions

Q-Line® circuit breakers are 1 in W per pole, compact, thermal magnetic devices designed for residential and commercial applications. The QB breakers are bolt-on versions of the Q-Line® used for bolting to the bus connections of load centers and lighting panels. All Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

Product Details

GE Q-Line® Miniature Circuit Breaker, Type THQL, 120/240 VAC, 15 A, 10 kA Interrupt, Q-Line Frame, LI/Non-Interchangeable Thermal Magnetic Trip, 2 Pole, 1 ph, 14 to 8 AWG Wire, Plug-In Mounting, 60/75 deg C, 2-3/8 in L x 2 in W x 3-9/32 in H Dimensions

Q-Line® circuit breakers are 1 in W per pole, compact, thermal magnetic devices designed for residential and commercial applications. The QB breakers are bolt-on versions of the Q-Line® used for bolting to the bus connections of load centers and lighting panels. All Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

Attributes

Amperage Rating: 15 A
Number of Poles: 2
Dimensions: 2-3/8 in L x 2 in W x 3-9/32 in H
Frame: Q-Line
Interrupt Rating: 10 kA
Mounting Type: Plug-In
Phase: 1
Temperature Rating: 60/75 deg C
Trip Type: LI/Non-Interchangeable Thermal Magnetic
Type: Type THQL
Voltage Rating: 120/240 VAC
Wire Size: 14 to 8 AWG

Features

  • Standard continuous current rated
  • For heating, air conditioning and refrigeration
  • LI - long time and instantaneous trip function
  • 12 to 8 AWG aluminum and 14 to 8 AWG copper wire

Resources

Specification Sheet
