ABB THQB1120 Image 1
ABB THQB1120 Image 2
ABB THQB1120 Image 3
ABB THQB1120 Image 4
content loaded

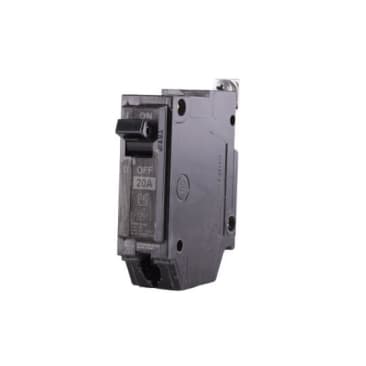

ABB THQB1120 Image 1

ABB THQB1120 THQB 1 POLE 120/240V 10K IC 20AMP

MFR Part #: THQB1120
SKU #: 1134949
Brand: ABB | GE Industrial Solutions
UPC: 783164012187
GE THQB1120 Type THQB Molded Case Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Pole, Common/LI/Thermal Magnetic Trip
Residential, Commercial, Electrical Distribution and Control Applications
UL File No. E11592 | CSA Certified

GE Miniature Circuit Breaker, Type THQB Molded Case, 120/240 VAC, 20 A, 10 kA Interrupt, Common/LI/Thermal Magnetic Trip, 1 Pole, 1 ph, 14 to 8 AWG, 12 to 8 AWG Wire, Bolted-On Mounting, 40 deg C, 3.28 in H x 1 in W x 2.38 in D Dimensions

Q-Line® circuit breakers are 1 in wide per pole, compact, thermal magnetic devices designed for residential and commercial applications. the QB breakers are bolt-on versions of the Q-Line® used for bolting to the bus connections of loadcenters and lighting panels. all Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

Product Details

GE Miniature Circuit Breaker, Type THQB Molded Case, 120/240 VAC, 20 A, 10 kA Interrupt, Common/LI/Thermal Magnetic Trip, 1 Pole, 1 ph, 14 to 8 AWG, 12 to 8 AWG Wire, Bolted-On Mounting, 40 deg C, 3.28 in H x 1 in W x 2.38 in D Dimensions

Q-Line® circuit breakers are 1 in wide per pole, compact, thermal magnetic devices designed for residential and commercial applications. the QB breakers are bolt-on versions of the Q-Line® used for bolting to the bus connections of loadcenters and lighting panels. all Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

Attributes

Amperage Rating: 20 A
Mounting Type: Bolt-On, Bolted-On
Number of Poles: 1
Voltage Rating: 120/240 VAC
Dimensions: 3.28 in H x 1 in W x 2.38 in D
Height: 3-9/32 in
Interrupt Rating: 10 kA
Length: 2-3/8 in
Phase: 1
Temperature Rating: 40 deg C
Trip Type: Common/LI/Thermal Magnetic
Type: Type THQB Molded Case
Width: 1 in
Wire Size: 14 to 8 AWG, 12 to 8 AWG, 12 to 8 AWG Aluminum, 14 to 8 AWG Copper

Features

  • The QB breakers are bolt-on versions of the Q-Line® used for bolting to the bus connections of loadcenters and lighting panels
  • All Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability
  • Fixed instantaneous trip function
  • Copper aluminum wire
  • Internal common trip

Resources

Specification Sheet
