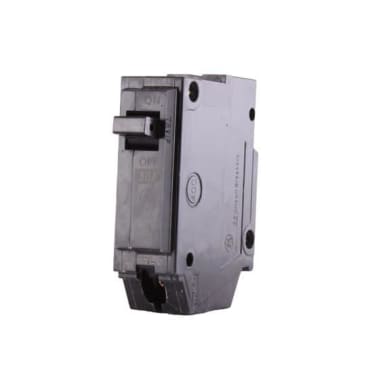

ABB THQL1130 THQL 1 POLE 120/240V 10K IC 30AMP

MFR Part #: THQL1130
SKU #: 1134961
Brand: ABB | GE Industrial Solutions
UPC: 783164012873
GE Q-Line® THQL1130 Type THQL Molded Case Circuit Breaker, 120/240 VAC, 30 A, 10 kA Interrupt, 1 Pole, LI/Non-Interchangeable Thermal Magnetic Trip
Commercial, Residential, Thermal Magnetic, Electrical Distribution and Control Applications

GE Q-Line® Molded Case Circuit Breaker, Type THQL, 120/240 VAC, 30 A, 10 kA Interrupt, Q-Line Frame, LI/Non-Interchangeable Thermal Magnetic Trip, 1 Pole, 1 ph, 12 to 8 AWG Wire, Plug-In Mounting, 60/75 deg C, 2-3/8 in L x 1 in W x 3-9/32 in H Dimensions

Q-Line® circuit breakers are 1 in W per pole, compact, thermal magnetic devices designed for residential and commercial applications. The QL breakers are plug-in versions of the Q-Line® used for connection to load centers and lighting panels. All Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

Product Details

GE Q-Line® Molded Case Circuit Breaker, Type THQL, 120/240 VAC, 30 A, 10 kA Interrupt, Q-Line Frame, LI/Non-Interchangeable Thermal Magnetic Trip, 1 Pole, 1 ph, 12 to 8 AWG Wire, Plug-In Mounting, 60/75 deg C, 2-3/8 in L x 1 in W x 3-9/32 in H Dimensions

Q-Line® circuit breakers are 1 in W per pole, compact, thermal magnetic devices designed for residential and commercial applications. The QL breakers are plug-in versions of the Q-Line® used for connection to load centers and lighting panels. All Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

Attributes

Amperage Rating: 30 A
Mounting Type: Plug-In
Number of Poles: 1
Voltage Rating: 120/240 VAC
Dimensions: 2-3/8 in L x 1 in W x 3-9/32 in H
Frame: Q-Line
Interrupt Rating: 10 kA
Phase: 1
Temperature Rating: 60/75 deg C
Trip Type: LI/Non-Interchangeable Thermal Magnetic
Type: Type THQL
Wire Size: 12 to 8 AWG

Features

  • LI - long time and instantaneous trip function
  • 138A GO schedule
  • 12 to 8 AWG aluminum and 14 to 8 AWG copper wire
  • Box lug load terminal

Resources

Specification Sheet
