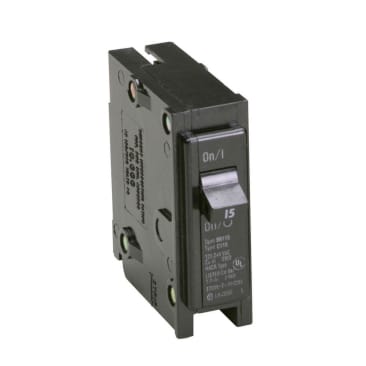

CUTLER HAMMER BR115 PUSH-IN 15 AMP 1 POLE BREAKER

MFR Part #: BR115
SKU #: 0711050
Brand: EATON
UPC: 786676362054
EATON BR115 Type BR Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 1 Poles, Thermal/Magnetic Trip
10 years
Conventional Energy Generation, Renewable Energy and Alternative Energy Generation, Marine Vessels and Equipment, Type BR Loadcenters and Circuit Protection Applications

EATON Circuit Breaker, Type BR, 120/240 VAC, 15 A, 10 kA Interrupt, Thermal/Magnetic Trip, 1 Pole, 1 ph ph, 14 to 4 AWG Wire, NEMA 1/4X/3R Enclosure, Plug-On Mounting, 600 to 750 deg C, 3 in L x 1 in W x 3 in H Dimensions

Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.

Product Details

EATON Circuit Breaker, Type BR, 120/240 VAC, 15 A, 10 kA Interrupt, Thermal/Magnetic Trip, 1 Pole, 1 ph ph, 14 to 4 AWG Wire, NEMA 1/4X/3R Enclosure, Plug-On Mounting, 600 to 750 deg C, 3 in L x 1 in W x 3 in H Dimensions

Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.

Attributes

Amperage Rating: 15 A
Mounting Type: Plug-On
Number of Poles: 1
Voltage Rating: 120/240 VAC
Dimensions: 3 in L x 1 in W x 3 in H
Enclosure Type: NEMA 1/4X/3R
Interrupt Rating: 10 kA
Phase: 1
Temperature Rating: 600 to 750 deg C
Trip Type: Thermal/Magnetic
Type: Type BR
Wire Size: 14 to 4 AWG

Features

  • Common trip requires one 1 in space
  • All BR circuit breakers have rejection tab feature
  • Units feature a quick make, quick break switch mechanism combined with inverse time element tripping operation and trip free handle design
  • For 1-pole circuit breakers carry listing for HACR application
