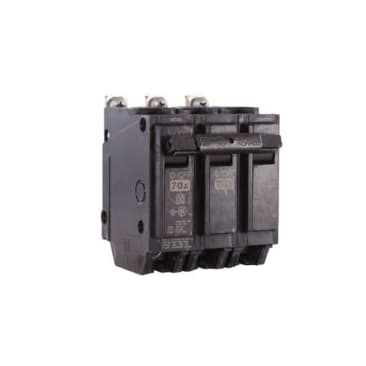

ABB THQB32070 THQB 3 POLE 240V 10K IC 70 AMP

MFR Part #: THQB32070
SKU #: 1235193
Brand: ABB | GE Industrial Solutions
UPC: 783164012453
GE THQB32070 Type THQB Molded Case Miniature Supplementary Protector, 240 VAC, 70 A, 10 kA Interrupt, 3 Poles, Common/LI/Thermal Magnetic Trip
Residential, Commercial, Electrical Distribution and Control Applications
UL File No. E11592|CSA Certified

GE Supplementary Protector, Type THQB Molded Case Miniature, 240 VAC, 70 A, 10 kA Interrupt, Common/LI/Thermal Magnetic Trip, 3 Pole, 6 to 1/0 AWG, 4 to 1/0 AWG Wire, Bolted-On Mounting, 40 deg C, 3.28 in H x 3 in W x 2.38 in D Dimensions

Q-Line® circuit breakers are 1 in wide per pole, compact, thermal magnetic devices designed for residential and commercial applications. the QB breakers are bolt-on versions of the Q-Line® used for bolting to the bus connections of loadcenters and lighting panels. all Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

Product Details

GE Supplementary Protector, Type THQB Molded Case Miniature, 240 VAC, 70 A, 10 kA Interrupt, Common/LI/Thermal Magnetic Trip, 3 Pole, 6 to 1/0 AWG, 4 to 1/0 AWG Wire, Bolted-On Mounting, 40 deg C, 3.28 in H x 3 in W x 2.38 in D Dimensions

Q-Line® circuit breakers are 1 in wide per pole, compact, thermal magnetic devices designed for residential and commercial applications. the QB breakers are bolt-on versions of the Q-Line® used for bolting to the bus connections of loadcenters and lighting panels. all Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

Attributes

Amperage Rating: 70 A
Mounting Type: Bolted-On
Number of Poles: 3
Dimensions: 3.28 in H x 3 in W x 2.38 in D
Interrupt Rating: 10 kA
Temperature Rating: 40 deg C
Trip Type: Common/LI/Thermal Magnetic
Type: Type THQB Molded Case Miniature
Voltage Rating: 240 VAC
Wire Size: 6 to 1/0 AWG, 4 to 1/0 AWG

Features

  • The QB breakers are bolt-on versions of the Q-Line® used for bolting to the bus connections of loadcenters and lighting panels
  • All Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability
  • Fixed instantaneous trip function
  • Copper aluminum wire
  • Internal common trip

Resources

Specification Sheet
