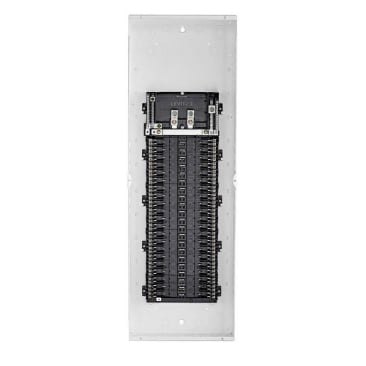

LEVITON LP422-CLD 225A 42-SPACE NEMA1 INDOOR LOAD CENTER WITH MAIN LUGS
MFR Part #:Â LP422-CLD
SKU #:Â 1191459
Brand: Leviton®
UPC:Â 07847792257
Leviton® LP422-CLD Indoor Load Center With Main Lug, 225 A, 120/240 VAC, 10 kA Interrupt
10 Year Limited
Enclosure and Door
CSA Certified|UL 50/50E/67/869A Listed
Product Details
Attributes
Features
Resources
Leviton® Indoor Load Center, 225 A, 120/240 VAC, 10 kA Interrupt, 3-Wire Wiring Configuration, 1 ph, 42 Spaces, 42 Circuits, Copper Bus, 3 AWG to 300 kcmil, 4 to 2/0 AWG Wire, NEMA 1, Steel, Powder-Coated, White, 0 to 40 deg C, 45.3 in H x 16.25 in W, Additional Information: 43 in H x 14-1/4 in W x 4 in D Box Size
Amperage Rating:
225 A
Country Of Origin:
Mexico
Number of Circuits:
42
Additional Information:
43 in H x 14-1/4 in W x 4 in D Box Size
Bus Material:
Copper
Color:
White
Dimensions:
45.3 in H x 16.25 in W
Enclosure Type:
NEMA 1
Finish:
Powder-Coated
Interrupt Rating:
10 kA
Material:
Steel
Number of Spaces:
42
Phase:
1 ph
Temperature Rating:
0 to 40 deg C
Voltage Rating:
120/240 VAC
Wire Size:
3 AWG to 300 kcmil, 4 to 2/0 AWG
Wiring Configuration:
3-Wire
- Leviton® revolutionary design allows the entire load center to be wired at rough-in without any circuit breakers present
- All Leviton load centers come standard equipped with tin-plated copper bussing
- Notches stamped into the enclosure for cable ties promote secure and neat wiring
- Features a white, powder-coated finish for a sleek, modern appearance
Product Details
Leviton® Indoor Load Center, 225 A, 120/240 VAC, 10 kA Interrupt, 3-Wire Wiring Configuration, 1 ph, 42 Spaces, 42 Circuits, Copper Bus, 3 AWG to 300 kcmil, 4 to 2/0 AWG Wire, NEMA 1, Steel, Powder-Coated, White, 0 to 40 deg C, 45.3 in H x 16.25 in W, Additional Information: 43 in H x 14-1/4 in W x 4 in D Box Size
Attributes
Amperage Rating:Â 225 A
Country Of Origin:Â Mexico
Number of Circuits:Â 42
Additional Information:Â 43 in H x 14-1/4 in W x 4 in D Box Size
Bus Material:Â Copper
Color:Â White
Dimensions:Â 45.3 in H x 16.25 in W
Enclosure Type:Â NEMA 1
Finish:Â Powder-Coated
Interrupt Rating:Â 10 kA
Material:Â Steel
Number of Spaces:Â 42
Phase:Â 1 ph
Temperature Rating:Â 0 to 40 deg C
Voltage Rating:Â 120/240 VAC
Wire Size:Â 3 AWG to 300 kcmil, 4 to 2/0 AWG
Wiring Configuration:Â 3-Wire
Features
- Leviton® revolutionary design allows the entire load center to be wired at rough-in without any circuit breakers present
- All Leviton load centers come standard equipped with tin-plated copper bussing
- Notches stamped into the enclosure for cable ties promote secure and neat wiring
- Features a white, powder-coated finish for a sleek, modern appearance
