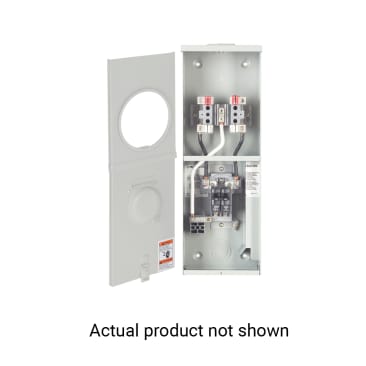

MICRO CO1-100 COMBO METER SOCKET/DISCONNECT W/100AMP BRKR
MFR Part #:Â CO1-100
SKU #:Â 0710755
Brand: ABB | Microlectric®
UPC:Â 624871023915
Microlectric® CO1-100 Combination Meter Socket With Siemens Q2100 100 A 2-Pole 10 kA Rated Circuit Breaker, 120/240 VAC, 100 A, 1 Phase, NEMA 3R Enclosure
For 120/240 VAC single phase service entrance for mobile homes, trailers, temporary services, recreational parks and Other commercial and residential locations
CSA 27716
Product Details
Attributes
Features
Resources
Microlectric® Meter Socket, Combination, Series: CO1, 120/240 VAC, 100 A, 1-Phase, Overhead Feed, 6 to 1/0 AWG Wire, NEMA 3R, 23-1/2 in H x 8-1/4 in W x 4-3/8 in D
Amperage Rating:
100 A
Country Of Origin:
Canada
Enclosure Type:
NEMA 3R
Dimensions:
23-1/2 in H x 8-1/4 in W x 4-3/8 in D
Feed Type:
Overhead
Phase:
1
Series:
CO1
Type:
Combination
Voltage Rating:
120/240 VAC
Wire Size:
6 to 1/0 AWG
- Supplied with screw type rings
- With factory installed neutral conductor
- Bottom compartment has provision for 2 pole circuit breaker (maximum 100 A) Siemens (Q), square D (QO)
- Weatherproof type 3R enclosure
Product Details
Microlectric® Meter Socket, Combination, Series: CO1, 120/240 VAC, 100 A, 1-Phase, Overhead Feed, 6 to 1/0 AWG Wire, NEMA 3R, 23-1/2 in H x 8-1/4 in W x 4-3/8 in D
Attributes
Amperage Rating:Â 100 A
Country Of Origin:Â Canada
Enclosure Type:Â NEMA 3R
Dimensions:Â 23-1/2 in H x 8-1/4 in W x 4-3/8 in D
Feed Type:Â Overhead
Phase:Â 1
Series:Â CO1
Type:Â Combination
Voltage Rating:Â 120/240 VAC
Wire Size:Â 6 to 1/0 AWG
Features
- Supplied with screw type rings
- With factory installed neutral conductor
- Bottom compartment has provision for 2 pole circuit breaker (maximum 100 A) Siemens (Q), square D (QO)
- Weatherproof type 3R enclosure
