MICRO CO12 2G COMBO METER PROVISIONS (F/2 X Q2100 BRKR)
MFR Part #:Â CO12
SKU #:Â 1133637
Brand: ABB | Microlectric®
UPC:Â 624871005362

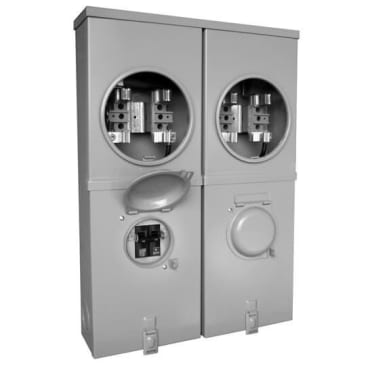

Thomas & Betts Microlectric® CO12 2-Gang 2-Position Weatherproof Meter Socket With Screw Type Ring, 120/240 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
Overhead Service Applications
CSA File No. 27716
Product Details
Attributes
Features
Resources
Thomas & Betts Microlectric® Meter Socket, 2-Gang 2-Position Weatherproof, Series: CO1, 120/240 VAC, 200 A, 1 Phase, Overhead Feed, 4 Jaws, 6 AWG to 250 kcmil, 6 to 1/0 AWG Wire, Screw Hub, Line/Load Lug Terminal, NEMA 3R Enclosure, 23-1/2 in H x 16-1/2 in W x 4-3/8 in D Dimensions
Amperage Rating:
200 A
Country Of Origin:
Canada
Dimensions:
23-1/2 in H x 16-1/2 in W x 4-3/8 in D
Enclosure Type:
NEMA 3R
Feed Type:
Overhead
Hub Type:
Screw
Number of Jaws:
4
Phase:
1
Series:
CO1
Terminal Type:
Line/Load Lug
Type:
2-Gang 2-Position Weatherproof
Voltage Rating:
120/240 VAC
Wire Size:
6 AWG to 250 kcmil, 6 to 1/0 AWG
- Provision for Siemens (2) Q2100 100 A, 2-pole, 10 kA rated circuit breaker
Product Details
Thomas & Betts Microlectric® Meter Socket, 2-Gang 2-Position Weatherproof, Series: CO1, 120/240 VAC, 200 A, 1 Phase, Overhead Feed, 4 Jaws, 6 AWG to 250 kcmil, 6 to 1/0 AWG Wire, Screw Hub, Line/Load Lug Terminal, NEMA 3R Enclosure, 23-1/2 in H x 16-1/2 in W x 4-3/8 in D Dimensions
Attributes
Amperage Rating:Â 200 A
Country Of Origin:Â Canada
Dimensions:Â 23-1/2 in H x 16-1/2 in W x 4-3/8 in D
Enclosure Type:Â NEMA 3R
Feed Type:Â Overhead
Hub Type:Â Screw
Number of Jaws:Â 4
Phase:Â 1
Series:Â CO1
Terminal Type:Â Line/Load Lug
Type:Â 2-Gang 2-Position Weatherproof
Voltage Rating:Â 120/240 VAC
Wire Size:Â 6 AWG to 250 kcmil, 6 to 1/0 AWG
Features
- Provision for Siemens (2) Q2100 100 A, 2-pole, 10 kA rated circuit breaker
