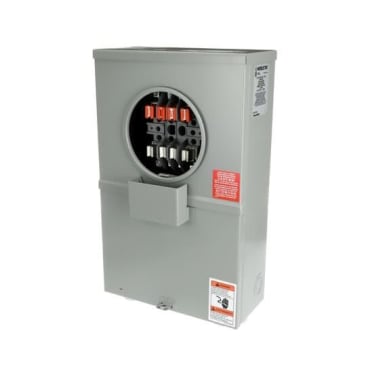

ABB CT108-L 20A 600V METER SOCKET TRANSFORMER
MFR Part #:Â CT108-L
SKU #:Â 1282978
Brand:Â ABB
UPC:Â 624871008530
Thomas & Betts Microlectric® CT108-L Transformer Rated Meter Socket With Screw Type Ring, 600 VAC, 20 A, 1 Phase
Underground Service Applications
CSA File No. 27716
Product Details
Attributes
Features
Resources
Thomas & Betts Microlectric® Transformer Rated Meter Socket, Series: CT Series, 600 VAC, 20 A, 1 Phase, Underground Feed, 8 Jaws, 14 to 10 AWG Wire, Line/Load Terminal, 19-1/8 in H x 11-13/16 in W x 5-7/16 in D Dimensions
Country Of Origin:
Canada
Amperage Rating:
20 A
Dimensions:
19-1/8 in H x 11-13/16 in W x 5-7/16 in D
Feed Type:
Underground
Number of Jaws:
8
Phase:
1
Series:
CT Series
Terminal Type:
Line/Load
Voltage Rating:
600 VAC
Wire Size:
14 to 10 AWG
- With compartment, SWL cover, enlarged padlock hole
- Tunnel type connector for both load and line sides
- Meter compartment cover overlaps lower test switch compartment cover, insertion of meter securely holds upper cover in place by means of a catch
- Lower test switch compartment cover securely held by upper cover and a catch at bottom
- A removable mounting bridge is provided for fastening test switch
- BC Hydro approved with SWL cover with enlarged padlock hole
Product Details
Thomas & Betts Microlectric® Transformer Rated Meter Socket, Series: CT Series, 600 VAC, 20 A, 1 Phase, Underground Feed, 8 Jaws, 14 to 10 AWG Wire, Line/Load Terminal, 19-1/8 in H x 11-13/16 in W x 5-7/16 in D Dimensions
Attributes
Country Of Origin:Â Canada
Amperage Rating:Â 20 A
Dimensions:Â 19-1/8 in H x 11-13/16 in W x 5-7/16 in D
Feed Type:Â Underground
Number of Jaws:Â 8
Phase:Â 1
Series:Â CT Series
Terminal Type:Â Line/Load
Voltage Rating:Â 600 VAC
Wire Size:Â 14 to 10 AWG
Features
- With compartment, SWL cover, enlarged padlock hole
- Tunnel type connector for both load and line sides
- Meter compartment cover overlaps lower test switch compartment cover, insertion of meter securely holds upper cover in place by means of a catch
- Lower test switch compartment cover securely held by upper cover and a catch at bottom
- A removable mounting bridge is provided for fastening test switch
- BC Hydro approved with SWL cover with enlarged padlock hole
