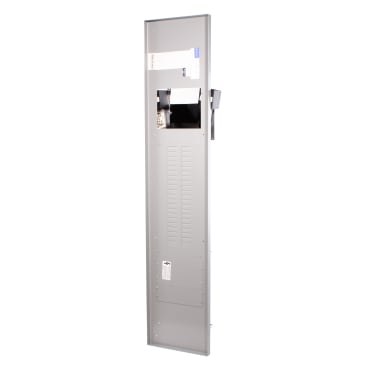

ABB AQU3424RCXAXT1B4 PRO-STK 240V 3PH 400AFT 42CR CU
MFR Part #: AQU3424RCXAXT1B4
SKU #: 1235033
Brand: ABB | GE Industrial Solutions
UPC: 783175120260
GE Pro-Stock™ AQU3424RCXAXT1B4 A-Series™ II 3-Phase Interior Unassembled Lighting Panelboard, 240 VAC, 400 A, 3 Poles
Electrical Distribution and Control Applications
CSA Certified|California Building Code Seismic Zone 4|Federal Specification W-P-115C|International Building Code Seismic Zone 3 and 4|NEC Article 384|UL 67|UL 50|UL 943
Product Details
Attributes
Features
Resources
GE Pro-Stock™ Lighting Panelboard, 3-Phase Interior Unassembled, Series: A-Series™ II, 240 VAC, 400 A, 3 Pole, 42 Circuits, Copper Bus, Feed-Through Feed, Bolted-On Mounting, NEMA 1/3R/12 Enclosure, 74 in L x 17 in W x 76 in H Dimensions
Amperage Rating:
400 A
Bus Material:
Copper
Dimensions:
74 in L x 17 in W x 76 in H
Enclosure Type:
NEMA 1/3R/12
Feed Type:
Feed-Through
Mounting Type:
Bolted-On
Number of Circuits:
42
Number of Poles:
3
Series:
A-Series™ II
Type:
3-Phase Interior Unassembled
Voltage Rating:
240 VAC
- Maximum system voltage is up to 240 VAC for AQ panelboard line
- Field installable kits allow you to shift gears on the fly
- Standard Pro-Stock™ panels have the capability of adding sub feed breaker or feed-through lug in the field
- All panel are convertible between main lug or main breaker
- Reversible interior and no need to specify top or bottom feed
- Solid state Spectra™ rms or thermal magnetic breakers available as mains or sub-feeds
- Flush or surface mounted trims with door within door and front hinge to box options available
- Modular kits allow for field installation of 200% neutrals and service entrance bonding straps
- Extruded split neutrals speed and simplify wiring
- Field installable TVSS (transient voltage surge suppression) kits, 200 kA per phase
- Up to six poles of sub feed available in 400 A and 600 A and up to 3-poles of sub feed available in 225 A
- 76 in H box/front
- 32 go schedule
Product Details
GE Pro-Stock™ Lighting Panelboard, 3-Phase Interior Unassembled, Series: A-Series™ II, 240 VAC, 400 A, 3 Pole, 42 Circuits, Copper Bus, Feed-Through Feed, Bolted-On Mounting, NEMA 1/3R/12 Enclosure, 74 in L x 17 in W x 76 in H Dimensions
Attributes
Amperage Rating: 400 A
Bus Material: Copper
Dimensions: 74 in L x 17 in W x 76 in H
Enclosure Type: NEMA 1/3R/12
Feed Type: Feed-Through
Mounting Type: Bolted-On
Number of Circuits: 42
Number of Poles: 3
Series: A-Series™ II
Type: 3-Phase Interior Unassembled
Voltage Rating: 240 VAC
Features
- Maximum system voltage is up to 240 VAC for AQ panelboard line
- Field installable kits allow you to shift gears on the fly
- Standard Pro-Stock™ panels have the capability of adding sub feed breaker or feed-through lug in the field
- All panel are convertible between main lug or main breaker
- Reversible interior and no need to specify top or bottom feed
- Solid state Spectra™ rms or thermal magnetic breakers available as mains or sub-feeds
- Flush or surface mounted trims with door within door and front hinge to box options available
- Modular kits allow for field installation of 200% neutrals and service entrance bonding straps
- Extruded split neutrals speed and simplify wiring
- Field installable TVSS (transient voltage surge suppression) kits, 200 kA per phase
- Up to six poles of sub feed available in 400 A and 600 A and up to 3-poles of sub feed available in 225 A
- 76 in H box/front
- 32 go schedule
