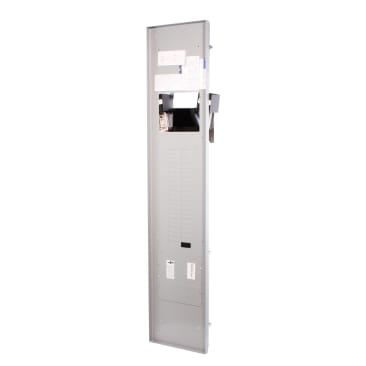

ABB AQU3426RCXAXT1B4 PRO-STK 120/208V 3PH 600A 42CT
MFR Part #: AQU3426RCXAXT1B4
SKU #: 1258633
Brand: ABB | GE Industrial Solutions
UPC: 783175120291
GE Pro-Stock™ AQU3426RCXAXT1B4 A-Series™ 3-Phase Type AQU Feed-Through Lighting Panelboard Interior, 240 VAC, 600 A, 65/200 kA Interrupt, 42 Spaces, 200 kA SCCR
Electrical Distribution and Control Applications
CSA Certified|UL Listed
Product Details
Attributes
Features
Resources
GE Pro-Stock™ Lighting Panelboard Interior, 3-Phase Type AQU Feed-Through, Series: A-Series™, 240 VAC, 600 A, 50/60 Hz Frequency, 65/200 kA Interrupt, 42 Spaces, 200 kA Short Circuit, THQB/THHQB/TXQB Breaker, Bolt-On Breaker Mounting, Copper Bus, Flush Mounting, NEMA 1/3R/12 Enclosure, 15-1/4 in W x 7 in D x 76 in H Dimensions
Amperage Rating:
600 A
Breaker Mounting:
Bolt-On
Breaker Type:
THQB/THHQB/TXQB
Bus Material:
Copper
Dimensions:
15-1/4 in W x 7 in D x 76 in H
Enclosure Type:
NEMA 1/3R/12
Frequency Rating:
50/60 Hz
Interrupt Rating:
65/200 kA
Mounting Type:
Flush
Number of Spaces:
42
Series:
A-Series™
Short Circuit Current Rating:
200 kA
Type:
3-Phase Type AQU Feed-Through
Voltage Rating:
240 VAC
- Maximum system voltage is up to 240 VAC for AQ panelboard line
- Field installable kits allow you to shift gears on the fly
- Standard Pro-Stock™ panels have the capability of adding sub-feed breaker or feed-through lug in the field
- All panel are convertible between main lug or main breaker
- Reversible interior and no need to specify top or bottom feed
- Extruded split neutrals speed and simplify wiring
- Modular kits allow for field installation of 200% neutrals and service entrance bonding straps
- Field installable TVSS (transient voltage surge suppression) kits, 200 kA per phase
- Up to six poles of sub-feed available in 400 and 600 A and up to 3 poles of sub-feed available in 225 A
- Solid state Spectra™ RMS or thermal magnetic breakers available as mains or sub-feeds
- Field installable TVSS (transient voltage surge suppression) kits
Product Details
GE Pro-Stock™ Lighting Panelboard Interior, 3-Phase Type AQU Feed-Through, Series: A-Series™, 240 VAC, 600 A, 50/60 Hz Frequency, 65/200 kA Interrupt, 42 Spaces, 200 kA Short Circuit, THQB/THHQB/TXQB Breaker, Bolt-On Breaker Mounting, Copper Bus, Flush Mounting, NEMA 1/3R/12 Enclosure, 15-1/4 in W x 7 in D x 76 in H Dimensions
Attributes
Amperage Rating: 600 A
Breaker Mounting: Bolt-On
Breaker Type: THQB/THHQB/TXQB
Bus Material: Copper
Dimensions: 15-1/4 in W x 7 in D x 76 in H
Enclosure Type: NEMA 1/3R/12
Frequency Rating: 50/60 Hz
Interrupt Rating: 65/200 kA
Mounting Type: Flush
Number of Spaces: 42
Series: A-Series™
Short Circuit Current Rating: 200 kA
Type: 3-Phase Type AQU Feed-Through
Voltage Rating: 240 VAC
Features
- Maximum system voltage is up to 240 VAC for AQ panelboard line
- Field installable kits allow you to shift gears on the fly
- Standard Pro-Stock™ panels have the capability of adding sub-feed breaker or feed-through lug in the field
- All panel are convertible between main lug or main breaker
- Reversible interior and no need to specify top or bottom feed
- Extruded split neutrals speed and simplify wiring
- Modular kits allow for field installation of 200% neutrals and service entrance bonding straps
- Field installable TVSS (transient voltage surge suppression) kits, 200 kA per phase
- Up to six poles of sub-feed available in 400 and 600 A and up to 3 poles of sub-feed available in 225 A
- Solid state Spectra™ RMS or thermal magnetic breakers available as mains or sub-feeds
- Field installable TVSS (transient voltage surge suppression) kits
