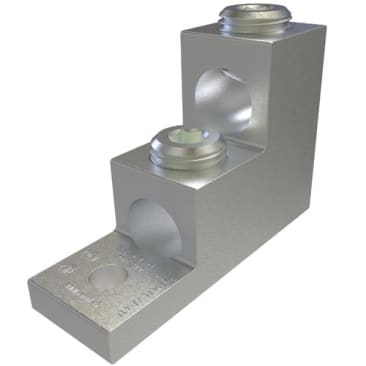

ILSCO PB2-300 300MCM-#6 ALUMINUM DUAL RATED PANELBOARD LUG
MFR Part #: PB2-300
SKU #: 1011273
Brand: ILSCO®
UPC: 78366918420
ILSCO® ClearChoice® PB2-300 Type PB Dual Rated Panelboard Stack Lug, 6 AWG to 300 kcmil, 5/16 in Bolt/Stud, For Use With Aluminum or Copper Conductor
Terminating Connector Applications
CSA File No. LR29601|UL 486A-B|UL 453G|UL File No. E6207|ECCN EAR99
Product Details
Attributes
Features
Resources
ILSCO® ClearChoice® Panelboard Stack Lug, Type PB Dual Rated, 6 AWG to 300 kcmil Conductor, 5/16 in Bolt/Stud, For Use With: Aluminum or Copper Conductor, 2000 VAC Electrical Rating, 2 Port, 5/16 in Hex, 3 in Length, 1 in Width, 2 in Height, Aluminum, Electro-Plated Tin
Bolt/Stud Size:
5/16 in
Conductor Range:
6 AWG to 300 kcmil
Country Of Origin:
Mexico
Electrical Ratings:
2000 VAC
Finish:
Electro-Plated Tin
Height:
2 in
Hex Size:
5/16 in
Length:
3 in
Material:
Aluminum
Number of Ports:
2
Suitable For Use With:
Aluminum or Copper Conductor
Type:
Type PB Dual Rated
Width:
1 in
- Manufactured from high strength 6061-T6 aluminum alloy
- Electro tin plated provides low contact resistance
- Chamfered wire entry provides ease of installation
- Stacked design saves space and reduces installation time
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- Ensures reliability for copper or aluminum conductors
- 1 in L x 1 in W x 5/16 in THK straight tongue
- 90 deg C temperature rating
- 1-stud
Product Details
ILSCO® ClearChoice® Panelboard Stack Lug, Type PB Dual Rated, 6 AWG to 300 kcmil Conductor, 5/16 in Bolt/Stud, For Use With: Aluminum or Copper Conductor, 2000 VAC Electrical Rating, 2 Port, 5/16 in Hex, 3 in Length, 1 in Width, 2 in Height, Aluminum, Electro-Plated Tin
Attributes
Bolt/Stud Size: 5/16 in
Conductor Range: 6 AWG to 300 kcmil
Country Of Origin: Mexico
Electrical Ratings: 2000 VAC
Finish: Electro-Plated Tin
Height: 2 in
Hex Size: 5/16 in
Length: 3 in
Material: Aluminum
Number of Ports: 2
Suitable For Use With: Aluminum or Copper Conductor
Type: Type PB Dual Rated
Width: 1 in
Features
- Manufactured from high strength 6061-T6 aluminum alloy
- Electro tin plated provides low contact resistance
- Chamfered wire entry provides ease of installation
- Stacked design saves space and reduces installation time
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- Ensures reliability for copper or aluminum conductors
- 1 in L x 1 in W x 5/16 in THK straight tongue
- 90 deg C temperature rating
- 1-stud
