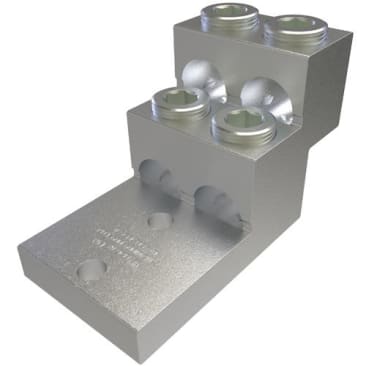

ILSCO PB4-600 600MCM-#2 ALUMINUM DUAL RATED PANELBOARD LUG
MFR Part #: PB4-600
SKU #: 1011275
Brand: ILSCO®
UPC: 78366917976
ILSCO® ClearChoice® PB4-600 Type PB Dual Rated Panelboard Stack Lug, 2 AWG to 600 kcmil, 3/8 in Bolt/Stud, 1-3/8 in Hole Spacing, For Use With Aluminum or Copper Conductor
Terminating Connector Applications
CSA File No. LR29601|UL 486A-B|UL 453G|UL File No. E6207|ECCN EAR99
Product Details
Attributes
Features
Resources
ILSCO® ClearChoice® Panelboard Stack Lug, Type PB Dual Rated, 2 AWG to 600 kcmil Conductor, 3/8 in Bolt/Stud, For Use With: Aluminum or Copper Conductor, 2000 VAC Electrical Rating, 1-3/8 in Hole Spacing, 4 Port, 1/2 in Hex, 4.9063 in Length, 2.4688 in Width, 3 in Height, Aluminum, Electro-Plated Tin
Bolt/Stud Size:
3/8 in
Conductor Range:
2 AWG to 600 kcmil
Country Of Origin:
Mexico
Electrical Ratings:
2000 VAC
Finish:
Electro-Plated Tin
Height:
3 in
Hex Size:
1/2 in
Hole Spacing:
1-3/8 in
Length:
4.9063 in
Material:
Aluminum
Number of Ports:
4
Suitable For Use With:
Aluminum or Copper Conductor
Type:
Type PB Dual Rated
Width:
2.4688 in
- Manufactured from high strength 6061-T6 aluminum alloy
- Electro tin plated provides low contact resistance
- Chamfered wire entry provides ease of installation
- Stacked design saves space and reduces installation time
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- Ensures reliability for copper or aluminum conductors
- 2-11/32 in L x 2-15/32 in W x 3/4 in THK straight tongue
- 90 deg C temperature rating
- 2-studs
Product Details
ILSCO® ClearChoice® Panelboard Stack Lug, Type PB Dual Rated, 2 AWG to 600 kcmil Conductor, 3/8 in Bolt/Stud, For Use With: Aluminum or Copper Conductor, 2000 VAC Electrical Rating, 1-3/8 in Hole Spacing, 4 Port, 1/2 in Hex, 4.9063 in Length, 2.4688 in Width, 3 in Height, Aluminum, Electro-Plated Tin
Attributes
Bolt/Stud Size: 3/8 in
Conductor Range: 2 AWG to 600 kcmil
Country Of Origin: Mexico
Electrical Ratings: 2000 VAC
Finish: Electro-Plated Tin
Height: 3 in
Hex Size: 1/2 in
Hole Spacing: 1-3/8 in
Length: 4.9063 in
Material: Aluminum
Number of Ports: 4
Suitable For Use With: Aluminum or Copper Conductor
Type: Type PB Dual Rated
Width: 2.4688 in
Features
- Manufactured from high strength 6061-T6 aluminum alloy
- Electro tin plated provides low contact resistance
- Chamfered wire entry provides ease of installation
- Stacked design saves space and reduces installation time
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- Ensures reliability for copper or aluminum conductors
- 2-11/32 in L x 2-15/32 in W x 3/4 in THK straight tongue
- 90 deg C temperature rating
- 2-studs
