ABB U055C010P CUL 6 1/2X14 70A 50/20
Product Details
Attributes
Features
Resources

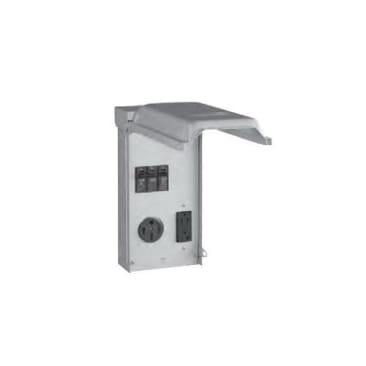

Midwest® GE Unmetered Temporary Power Outlet, 120/240 VAC, 70 A, 1 Phase , BR54U/5-20R2 GFCI Receptacle, THQL1120/THQL2150 Circuit Breaker, 14 to 8 AWG, 14 to 1/0 AWG Wire, NEMA 3R, Steel, Plug-In Mount
Site-Power™ temporary power equipment from Midwest Electric combines the metering, circuit protection and power outlet combinations that are required on most construction sites. Every unit is delivered to the job site ready to go with factory installed and wired components - giving you the assurance needed for a reliable and safe temporary power unit. All Site-Power™ enclosures are constructed from heavy-gauge G90 galvanized steel for superior corrosion resistance. The durable polyester powder coat finish resists chipping and fading. The equipment door is designed to protect power cords and plugs and has a padlock provision to guard against unauthorized use or vandalism.
- Rolled edge door for cord protection
- Continuous duty meter socket with meter guides and reinforced jaws - ringless and ring type
- Utility accepted meter sealing accommodations
- G90 galvanized steel construction for superior corrosion resistance
- Durable polyester powder coat finish resists chipping and fading
- All GFCI duplexes are listed as weather resistant and tamper resistant as required by NEC in Article 406.8 and 406.11
- Dead front construction prevents accidental contact with live parts
- Padlock provision to prevent unauthorized access
- All components factory wired and assembled, reducing installation time
- Door removable for installation ease, stay open position for user convenience
- All terminals accept copper or aluminum wire for added installation flexibility
- Wide range of receptacle configurations
- Broad range of concentric knockouts to accommodate varied wiring needs
- All units with factory installed copper/aluminum equipment ground lug
- Available with GFI circuit breakers
- Eliminates construction delays due to red tag code violations
- All ringless meter socket models have standard horn bypass
- 14 to 8 AWG solid/14 to 1/0 AWG stranded copper, 12 to 8 AWG solid/12 to 1/0 AWG stranded aluminum line connector, 14 to 10 AWG solid/stranded copper load connector
Product Details
Midwest® GE Unmetered Temporary Power Outlet, 120/240 VAC, 70 A, 1 Phase , BR54U/5-20R2 GFCI Receptacle, THQL1120/THQL2150 Circuit Breaker, 14 to 8 AWG, 14 to 1/0 AWG Wire, NEMA 3R, Steel, Plug-In Mount
Site-Power™ temporary power equipment from Midwest Electric combines the metering, circuit protection and power outlet combinations that are required on most construction sites. Every unit is delivered to the job site ready to go with factory installed and wired components - giving you the assurance needed for a reliable and safe temporary power unit. All Site-Power™ enclosures are constructed from heavy-gauge G90 galvanized steel for superior corrosion resistance. The durable polyester powder coat finish resists chipping and fading. The equipment door is designed to protect power cords and plugs and has a padlock provision to guard against unauthorized use or vandalism.
Attributes
Features
- Rolled edge door for cord protection
- Continuous duty meter socket with meter guides and reinforced jaws - ringless and ring type
- Utility accepted meter sealing accommodations
- G90 galvanized steel construction for superior corrosion resistance
- Durable polyester powder coat finish resists chipping and fading
- All GFCI duplexes are listed as weather resistant and tamper resistant as required by NEC in Article 406.8 and 406.11
- Dead front construction prevents accidental contact with live parts
- Padlock provision to prevent unauthorized access
- All components factory wired and assembled, reducing installation time
- Door removable for installation ease, stay open position for user convenience
- All terminals accept copper or aluminum wire for added installation flexibility
- Wide range of receptacle configurations
- Broad range of concentric knockouts to accommodate varied wiring needs
- All units with factory installed copper/aluminum equipment ground lug
- Available with GFI circuit breakers
- Eliminates construction delays due to red tag code violations
- All ringless meter socket models have standard horn bypass
- 14 to 8 AWG solid/14 to 1/0 AWG stranded copper, 12 to 8 AWG solid/12 to 1/0 AWG stranded aluminum line connector, 14 to 10 AWG solid/stranded copper load connector
