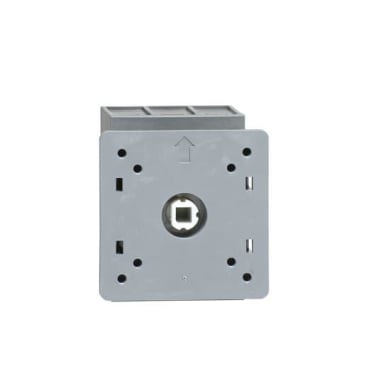

ABB OT63FT3 Image 1

ABB OT63FT3 NON-FUSIBLE DISCONNECT SWITCH 60A

MFR Part #: OT63FT3
SKU #: 1163971
Brand: ABB
UPC: 804325415613
ABB OT63FT3 Non-Fusible Door Mounted Switch With Protected Clamp Terminals, 600 VAC, 60 A, 15 hp at 200 VAC, 30 hp at 480 VAC, 15 hp at 208 VAC, 15 hp at 240 VAC, 30 hp at 600 VAC, Open Contact, 3 Poles
Industrial Control Panel Disconnect Applications
UL 508 | CSA C22.2 No.14 | CE Certified | IEC 60947-3 | RoHS Compliant

ABB Door Mounted Switch, Non-Fusible, Series: OT Series, 600 VAC, 60 A, 15 hp at 200 VAC, 30 hp at 480 VAC, 15 hp at 208 VAC, 15 hp at 240 VAC, 30 hp at 600 VAC, 50 Hz Frequency, 3 Pole, 17 kA Short Circuit, Open Contact Form, Door Mounting, Screw Terminal, -40 to 40 deg C, 72 mm H x 65 mm W x 69 mm D Dimensions

Manual switch-disconnectors by ABB are suitable for a wide range of demanding applications ranging from machinery to entire photovoltaic installations. They have been designed to be compact and reliable, offering high performance in even the most demanding environments.

Product Details

ABB Door Mounted Switch, Non-Fusible, Series: OT Series, 600 VAC, 60 A, 15 hp at 200 VAC, 30 hp at 480 VAC, 15 hp at 208 VAC, 15 hp at 240 VAC, 30 hp at 600 VAC, 50 Hz Frequency, 3 Pole, 17 kA Short Circuit, Open Contact Form, Door Mounting, Screw Terminal, -40 to 40 deg C, 72 mm H x 65 mm W x 69 mm D Dimensions

Manual switch-disconnectors by ABB are suitable for a wide range of demanding applications ranging from machinery to entire photovoltaic installations. They have been designed to be compact and reliable, offering high performance in even the most demanding environments.

Attributes

Amperage Rating: 60 A
Country Of Origin: Finland
Number of Poles: 3
Contact Form: Open
Dimensions: 72 mm H x 65 mm W x 69 mm D
Frequency Rating: 50 Hz
Horsepower: 15 hp at 200 VAC, 30 hp at 480 VAC, 15 hp at 208 VAC, 15 hp at 240 VAC, 30 hp at 600 VAC
Mounting Type: Door
Series: OT Series
Short Circuit Current Rating: 17 kA
Temperature Rating: -40 to 40 deg C
Terminal Type: Screw
Type: Non-Fusible
Voltage Rating: 600 VAC

Features

  • Front operated
  • Handle is not included

Resources

Specification Sheet
