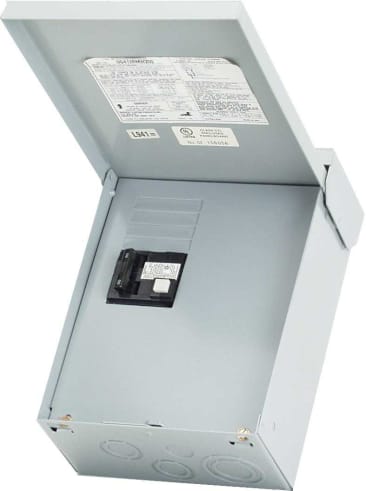

ABB UG412RMW260 Image 1

ABB UG412RMW260 GFI DISCONNECT SPA PANEL 60A

MFR Part #: UG412RMW260
SKU #: 1270710
Brand: Midwest®
UPC: 784567206524
Midwest® GE UG412RMW260 GFI Disconnect Spa Panel, 120/240 VAC, 60 A, 2 Poles
ARRA Compliant | Buy American Act Compliant | RoHS Compliant | cUL/UL Listed

Midwest® GE GFI Disconnect Spa Panel, 120/240 VAC, 60 A, 1 ph, 2 Pole, 10 kA Short Circuit, NEMA 3R Enclosure, Surface Mounting, 10 in H x 7-1/2 in W x 4 in D Dimensions, Steel, Gray, Powder Coated

GFI disconnects provide a convenient, low cost means to satisfy NEC requirements for spas, hot tubs, water heaters and swimming pools. The NEMA 3R design insures a safe, weather tight installation for residential, light commercial and even some industrial applications.

Product Details

Midwest® GE GFI Disconnect Spa Panel, 120/240 VAC, 60 A, 1 ph, 2 Pole, 10 kA Short Circuit, NEMA 3R Enclosure, Surface Mounting, 10 in H x 7-1/2 in W x 4 in D Dimensions, Steel, Gray, Powder Coated

GFI disconnects provide a convenient, low cost means to satisfy NEC requirements for spas, hot tubs, water heaters and swimming pools. The NEMA 3R design insures a safe, weather tight installation for residential, light commercial and even some industrial applications.

Attributes

Amperage Rating: 60 A
Color: Gray
Dimensions: 10 in H x 7-1/2 in W x 4 in D
Enclosure Type: NEMA 3R
Finish: Powder Coated
Material: Steel
Mounting Type: Surface
Number of Poles: 2
Phase: 1
Short Circuit Current Rating: 10 kA
Voltage Rating: 120/240 VAC

Features

  • Gray color all terminals accept copper or aluminum wire, for added installation flexibility rated NEMA 3R - outdoor weatherproof equipment
  • Door has padlock provisions to prevent unauthorized access
  • Includes over current protection as well as GFI protection
  • Additional circuit breaker spaces available in each model
  • Hub provision 2-poles 50 A GFI installed breaker 125 A rated with 2 additional breaker spaces load center
  • Suitable for service equipment lug wire size: 6 to 2/0 AWG 2-poles 60 A GFI receptacle

Resources

Full Engineering Drawing
Owners/User Manual
Specification Sheet
Warranty Information
