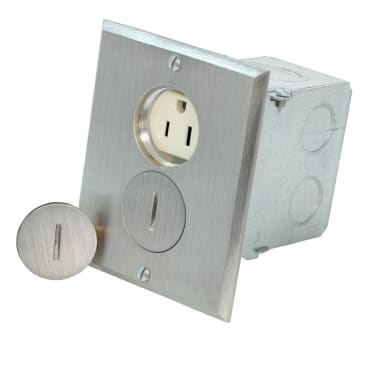

LEVITON 25249-SBA 15A 125V 2-POLE 3-WIRE DUPLEX FLOOR BOX ASSEMBLY BRUSHED NICKEL
Product Details
Attributes
Features
Resources
Leviton®, 25249-SBA, Floor Box Receptacle Assembly, Duplex Standard, NEMA 5-15R Enclosure, -40 to 60 deg C, Floor Box Mounting, Nylon, Brushed Nickel, Ivory, 4-1/2 in H x 3-3/4 in W x 4-1/2 in D Dimensions
For low profile, in-floor receptacle installations, our floor boxes are the perfect fit. Available in both 15 and 20 A configurations, these devices are suitable for wood frame construction with carpet and wood finished flooring, common applications include a variety of uses from home office workstations to high end stages and entertainment venues.
- Zinc plated steel strap
- The flange height of 0.27 in meets Americans with Disabilities act (ADA) standards for accessible design section 4.3.8
- Terminal wiring screws fit inside a standard single gang wall box; adapter plate not required
- Impact resistant nylon cover and base for strength and resistance to chemicals and corrosives
- Easy-to-read voltage and amperage rating molded onto smooth face
- Extra heavy-duty, T-type triple-wipe bronze contacts for maximum performance
- Ground holes configured up or down to be outside the device, accommodating up to 4 fed spec size straight or angle plugs
- No 8 terminal screws accept up to no 12 solid or stranded copper wire
- Termination anchor holes for easy conductor wiring
- Exclusive shield-wall design protects ground connection from contact with live circuit conductors
- Self-grounding
- Convenient built-in strip gauge
- Brass triple wipe 0.031 THK line contacts
- Single receptacle is ideal for applications that require a dedicated circuit
- Brass plated ground clips
- Brass plate and screw cap resist abuse and prevent foreign contaminants from entering device
- Tamper resistant receptacles meet NEC 2014 article 406.12 requirements
- Plate gasket and rubber o-ring combine to seal out moisture and air borne particles
- Meets NEC 2014 article 314.27B for floor boxes
Product Details
Leviton®, 25249-SBA, Floor Box Receptacle Assembly, Duplex Standard, NEMA 5-15R Enclosure, -40 to 60 deg C, Floor Box Mounting, Nylon, Brushed Nickel, Ivory, 4-1/2 in H x 3-3/4 in W x 4-1/2 in D Dimensions
For low profile, in-floor receptacle installations, our floor boxes are the perfect fit. Available in both 15 and 20 A configurations, these devices are suitable for wood frame construction with carpet and wood finished flooring, common applications include a variety of uses from home office workstations to high end stages and entertainment venues.
Attributes
Features
- Zinc plated steel strap
- The flange height of 0.27 in meets Americans with Disabilities act (ADA) standards for accessible design section 4.3.8
- Terminal wiring screws fit inside a standard single gang wall box; adapter plate not required
- Impact resistant nylon cover and base for strength and resistance to chemicals and corrosives
- Easy-to-read voltage and amperage rating molded onto smooth face
- Extra heavy-duty, T-type triple-wipe bronze contacts for maximum performance
- Ground holes configured up or down to be outside the device, accommodating up to 4 fed spec size straight or angle plugs
- No 8 terminal screws accept up to no 12 solid or stranded copper wire
- Termination anchor holes for easy conductor wiring
- Exclusive shield-wall design protects ground connection from contact with live circuit conductors
- Self-grounding
- Convenient built-in strip gauge
- Brass triple wipe 0.031 THK line contacts
- Single receptacle is ideal for applications that require a dedicated circuit
- Brass plated ground clips
- Brass plate and screw cap resist abuse and prevent foreign contaminants from entering device
- Tamper resistant receptacles meet NEC 2014 article 406.12 requirements
- Plate gasket and rubber o-ring combine to seal out moisture and air borne particles
- Meets NEC 2014 article 314.27B for floor boxes
