ABB STE050 1/2 HUB TECK CONNECTOR 0.600-0.985
Product Details
Attributes
Features
Resources

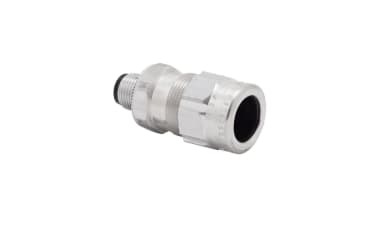

T&B® Fittings STE050 Teck Cable Connector, Series: STE, 1/2 in Trade, Cable Openings: 0.6 to 0.985 in, ACWU/JMC/MC/TECK Cable, NPT Connection, Aluminum, Silver, 1.63 in Dia x 2.52 in L Dimensions
The STAR TECK EXTREME fitting was the industry?s first range-taking teck fitting. This fitting simplified matching cables to fittings and reduced the number of different size fittings that had to be inventoried. Now one STAR TECK EXTREME fitting could cover the range of three conventional STAR TECK fitting hub sizes. With the STAR TECK EXTREME fitting also came the invention of removable armour stops, another feature that has since become an industry standard.
- Patented power grip grounding ring
- Elastomeric collar ring/bushing for greater cable ranges
- Built-in jacket stripping gauge on gland nut
- Gland nut can be tightened with hammer and screwdriver
- Provides means for passing armored, metal clad, jacketed cable through a bulkhead or enclosure in hazardous areas
- Form a mechanical grip and water and/or oil resistant seal for cord
- Provide grounding continuity of cable armor
- Designed to accommodate a broad range of cables
- Each hub range overlaps the adjacent hub range, thereby minimizing the possibility of mismatched cables and fittings in the field
- Built-in sealing device
- 300 in-lb gland torque
- 0.612 in Dia throat without end stop
- Now one STAR TECK EXTREME fitting could cover the range of three conventional STAR TECK fitting hub sizes. With the STAR TECK EXTREME fitting also came the invention of removable armour stops another feature that has since become an industry standard.
- This fitting simplified matching cables to fittings and reduced the number of different size fittings that had to be inventoried
Product Details
T&B® Fittings STE050 Teck Cable Connector, Series: STE, 1/2 in Trade, Cable Openings: 0.6 to 0.985 in, ACWU/JMC/MC/TECK Cable, NPT Connection, Aluminum, Silver, 1.63 in Dia x 2.52 in L Dimensions
The STAR TECK EXTREME fitting was the industry?s first range-taking teck fitting. This fitting simplified matching cables to fittings and reduced the number of different size fittings that had to be inventoried. Now one STAR TECK EXTREME fitting could cover the range of three conventional STAR TECK fitting hub sizes. With the STAR TECK EXTREME fitting also came the invention of removable armour stops, another feature that has since become an industry standard.
Attributes
Features
- Patented power grip grounding ring
- Elastomeric collar ring/bushing for greater cable ranges
- Built-in jacket stripping gauge on gland nut
- Gland nut can be tightened with hammer and screwdriver
- Provides means for passing armored, metal clad, jacketed cable through a bulkhead or enclosure in hazardous areas
- Form a mechanical grip and water and/or oil resistant seal for cord
- Provide grounding continuity of cable armor
- Designed to accommodate a broad range of cables
- Each hub range overlaps the adjacent hub range, thereby minimizing the possibility of mismatched cables and fittings in the field
- Built-in sealing device
- 300 in-lb gland torque
- 0.612 in Dia throat without end stop
- Now one STAR TECK EXTREME fitting could cover the range of three conventional STAR TECK fitting hub sizes. With the STAR TECK EXTREME fitting also came the invention of removable armour stops another feature that has since become an industry standard.
- This fitting simplified matching cables to fittings and reduced the number of different size fittings that had to be inventoried
