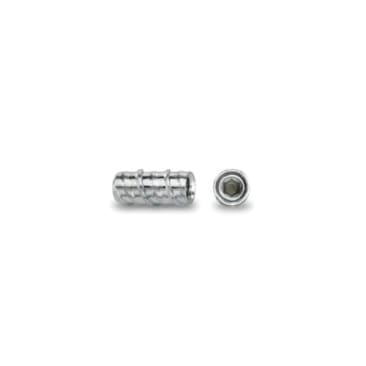

DEWALT 6403SD Image 1

DEWALT 6403SD-PWR SNAKE+ 1/2IN INTERNAL THREAD (PK50/PER EA)

MFR Part #: 6403SD
SKU #: 1181881
Brand: DeWALT®
UPC: 75352802862
DeWALT® 6403SD Snake+™ Anchor Screw, 1/2 in Internal, 15/16 in OAL, Carbon Steel
Suspending Conduit, Cable Trays, Strut, Pipe supports, Seismic, Wind Loading, Fire Sprinklers and Suspended Lighting

DeWALT® Anchor Screw, Series: Snake+™, Measurement System: Imperial, 1/2 in Internal Thread, 15/16 in Overall Length, Carbon Steel, Zinc Plated Wall, Internal Thread, 2-1/2 in Minimum Full Thread Depth, 0.1419 sq-in Tensile Strength, 3/4 in Drill, Zinc Plated

The Snake+ anchor is an internally threaded, self-tapping screw anchor designed for performance in cracked and uncracked concrete. Suitable base materials include normal weight concrete, sand-light weight concrete and concrete over steel deck. The Snake+ screw anchor is installed into a drilled hole with a power tool and a Snake+ setting tool. After installation a steel element is threaded into the anchor body.

Product Details

DeWALT® Anchor Screw, Series: Snake+™, Measurement System: Imperial, 1/2 in Internal Thread, 15/16 in Overall Length, Carbon Steel, Zinc Plated Wall, Internal Thread, 2-1/2 in Minimum Full Thread Depth, 0.1419 sq-in Tensile Strength, 3/4 in Drill, Zinc Plated

The Snake+ anchor is an internally threaded, self-tapping screw anchor designed for performance in cracked and uncracked concrete. Suitable base materials include normal weight concrete, sand-light weight concrete and concrete over steel deck. The Snake+ screw anchor is installed into a drilled hole with a power tool and a Snake+ setting tool. After installation a steel element is threaded into the anchor body.

Attributes

Bolt/Rod Size: 1/2 in
Drill Size: 3/4 in
Material: Carbon Steel
Shear Strength: 1995 lb
Tensile Strength: .1419 sq-in
Finish: Zinc Plated
Internal Thread Size: 1/2 in
Measurement System: Imperial
Minimum Full Thread Depth: 2-1/2 in
Overall Length: 15/16 in
Series: Snake+™
Thread Type: Internal
Wall Type: Zinc Plated

Features

  • Cracked concrete approved alternative to a drop-in anchor
  • Anchor design allows for shallow embedment and mechanically interlocks with base material
  • Internally threaded anchor for easy adjustment and removability of threaded rod or bolt
  • Fast anchor installation with a powered impact wrench
  • Hammer not used for installation

Resources

Catalog
