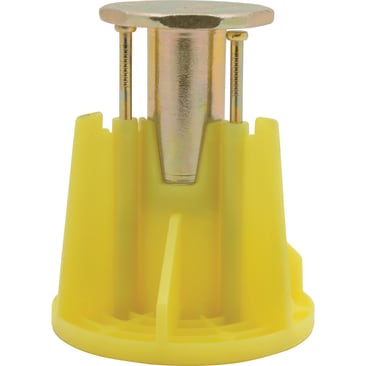

DEWALT PFM2521200 Image 1

DEWALT PFM2521200 1/2 WOOD-KNOCKER II+ (PK100/PER EA)

MFR Part #: PFM2521200
SKU #: 1243137
Brand: DeWALT®
UPC: 075352303024
DeWALT® Wood-Knocker®II PFM2521200 Cast-In-Place Concrete Insert, 1/2 in Dia, 11/16 in L Thread, Carbon Steel/Engineered Plastic
Hanging Pipe and Sprinkler Systems, HVAC Ductwork and Strut Channels, Suspending Trapeze and Cable Trays, Mechanical Unit Overhead Utilities, Conduit and Lighting System, Seismic Loading and Cracked Concrete

DeWALT® Wood-Knocker®II Concrete Insert, Cast-In-Place, 1/2 in Diameter, 11/16 in Thread Length, Carbon Steel/Engineered Plastic, UNC Thread, 1/2-13 Thread, 2 in Overall Length, Zinc Plated

Wood-Knocker®II and Pan-Knocker™II concrete inserts are installed onto forms used to support newly poured concrete floor slabs, roof slabs or walls. The concrete inserts are specifically designed to provide hanger attachments for mechanical, electrical, plumbing (MEP) and fire protection. When the forms are stripped, the color-coded flange is visibly embedded in the concrete surface. The inserts allow the attachment of steel threaded rod or threaded bolts in sizes ranging from 1/4 to 3/4 in Dia, including a 1/4 to 3/8 in and 3/8 to 1/2 in and 1/4-3/8-1/2 multi version. The hex impact plate offers resistance to rotation within the concrete as a steel threaded rod or threaded bolt is being installed.

Product Details

DeWALT® Wood-Knocker®II Concrete Insert, Cast-In-Place, 1/2 in Diameter, 11/16 in Thread Length, Carbon Steel/Engineered Plastic, UNC Thread, 1/2-13 Thread, 2 in Overall Length, Zinc Plated

Wood-Knocker®II and Pan-Knocker™II concrete inserts are installed onto forms used to support newly poured concrete floor slabs, roof slabs or walls. The concrete inserts are specifically designed to provide hanger attachments for mechanical, electrical, plumbing (MEP) and fire protection. When the forms are stripped, the color-coded flange is visibly embedded in the concrete surface. The inserts allow the attachment of steel threaded rod or threaded bolts in sizes ranging from 1/4 to 3/4 in Dia, including a 1/4 to 3/8 in and 3/8 to 1/2 in and 1/4-3/8-1/2 multi version. The hex impact plate offers resistance to rotation within the concrete as a steel threaded rod or threaded bolt is being installed.

Attributes

Diameter1/2 in
FinishZinc Plated
MaterialCarbon Steel/Engineered Plastic
Overall Length2 in
Thread Length11/16 in
Thread Size1/2-13
Thread TypeUNC
TypeCast-In-Place

Features

  • Fast and simple to install, low installed cost
  • Color coded by size for simple identification
  • Wood-Knocker®II+ and Pan-Knocker™II+ can be installed in form pours only 3-1/2 in THK (see installation details)
  • Hex head does not rotate when set
  • Insert design allows for full thread engagement
  • Suitable for seismic and wind loading
