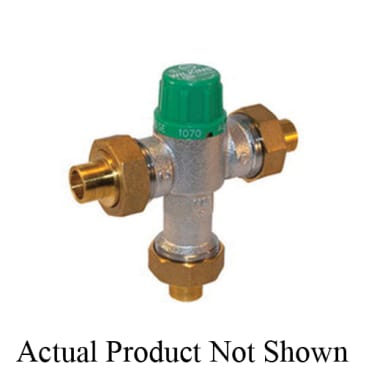

ZURN 38-ZW1070XLCOMP Image 1

ZURN 38-ZW1070XLCOMP THERMOSTATIC MIXER VLV

MFR Part #: 38-ZW1070XLCOMP
SKU #: 1231458
Brand: Zurn® | Wilkins
UPC: 10612052097593
Zurn® Wilkins Aqua-Gard® 38-ZW1070XLCOMP Thermostatic Mixing Valve, 3/8 in, Compression, 145 psi, 10 gpm Flow, Cast Bronze Body
1 Year
Residential and Light Commercial
ASTM B584|ASTM B456|ASSE 1017|ASSE 1070|ANSI/NSF 61-9

Zurn® Wilkins Aqua-Gard® Lead-Free Thermostatic Mixing Valve, Series: ZW1070XL, 3/8 in Nominal, Compression, 145 psi, 120 to 195 deg F Hot Supply/40 to 75 deg F Cold Supply, 10 gpm Flow, Media: Water, 5-13/16 in Inlet to Outlet Length, 2-1/16 in Top to Inlet Center, Cast Bronze Body, 300 Stainless Steel Spring Trim, FKM Seal/Noryl GFN2 Guide Tube, Nickel Plated, 5-11/16 in H

The Aqua-Gard® ZW1070XL Thermostatic Mixing Valve is designed to be installed at the point of use (residential and most light commercial installations) to mix hot and cold water from the distribution system to a final safer temperature.

Product Details

Zurn® Wilkins Aqua-Gard® Lead-Free Thermostatic Mixing Valve, Series: ZW1070XL, 3/8 in Nominal, Compression, 145 psi, 120 to 195 deg F Hot Supply/40 to 75 deg F Cold Supply, 10 gpm Flow, Media: Water, 5-13/16 in Inlet to Outlet Length, 2-1/16 in Top to Inlet Center, Cast Bronze Body, 300 Stainless Steel Spring Trim, FKM Seal/Noryl GFN2 Guide Tube, Nickel Plated, 5-11/16 in H

The Aqua-Gard® ZW1070XL Thermostatic Mixing Valve is designed to be installed at the point of use (residential and most light commercial installations) to mix hot and cold water from the distribution system to a final safer temperature.

Attributes

Nominal Size3/8 in
Pressure Rating145 psi
Body MaterialCast Bronze
Dimensions5-11/16 in H
End StyleCompression
FinishNickel Plated
Flow Capacity10 gpm
Inlet to Outlet Length5-13/16 in
MediaWater
SeriesZW1070XL
Softgoods MaterialFKM Seal/Noryl GFN2 Guide Tube
Temperature Rating120 to 195 deg F Hot Supply/40 to 75 deg F Cold Supply
Top to Inlet Center2-1/16 in
Trim Material300 Stainless Steel Spring

Features

  • Designed for installation at the point of use
  • Suitable for multiple fixtures
  • 10 gpm flow rate at 45 psi pressure loss
