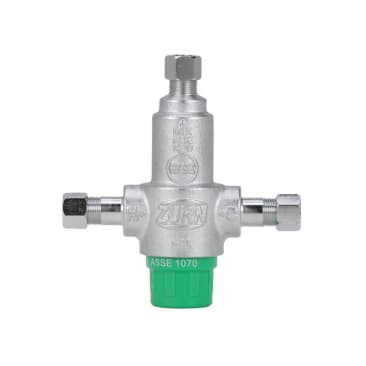

ZURN 38-ZW3870XLT Image 1

ZURN 38-ZW3870XLT 3/8 THERMOSTATIC MIXING VALVE

MFR Part #: 38-ZW3870XLT
SKU #: 1123125
Brand: Zurn® | Wilkins
UPC: 10612052077762
Zurn® Wilkins Aqua-Gard® 38-ZW3870XLT Thermostatic Mixing Valve With 3-Port, 3/8 in, Compression, 145 psi, 3.1 gpm Flow, Cast Bronze Body
1 Year
Inlet Checks and Strainers
Commercial and Industrial
ASTM B584|ASSE 1070|ASSE 1016|CSA Certified|ANSI/NSF 61-9

Zurn® Wilkins Aqua-Gard® Lead-Free Thermostatic Mixing Valve, Series: ZW3870XLT, 3/8 in Nominal, Compression, 145 psi, 120 to 195 deg F Hot Supply/40 to 75 deg F Cold Supply, 3.1 gpm Flow, Media: Water, 4-3/16 in Inlet to Outlet Length, 2-27/32 in Top to Inlet Center, Cast Bronze Body, 300 Stainless Steel Spring Trim, FKM Seal/Noryl GFN2 Guide Tube/Acetal Co-Polymer Checks, Nickel Plated, 4-27/32 in H

The Aqua-Gard® ZW3870XLT Thermostatic Mixing Valve is designed to be installed with 3/8 in point of use applications (residential and light commercial installations) to mix hot and cold water from the distribution system to a final safer temperature.

Product Details

Zurn® Wilkins Aqua-Gard® Lead-Free Thermostatic Mixing Valve, Series: ZW3870XLT, 3/8 in Nominal, Compression, 145 psi, 120 to 195 deg F Hot Supply/40 to 75 deg F Cold Supply, 3.1 gpm Flow, Media: Water, 4-3/16 in Inlet to Outlet Length, 2-27/32 in Top to Inlet Center, Cast Bronze Body, 300 Stainless Steel Spring Trim, FKM Seal/Noryl GFN2 Guide Tube/Acetal Co-Polymer Checks, Nickel Plated, 4-27/32 in H

The Aqua-Gard® ZW3870XLT Thermostatic Mixing Valve is designed to be installed with 3/8 in point of use applications (residential and light commercial installations) to mix hot and cold water from the distribution system to a final safer temperature.

Attributes

Nominal Size3/8 in
Pressure Rating145 psi
Body MaterialCast Bronze
Dimensions4-27/32 in H
End StyleCompression
FinishNickel Plated
Flow Capacity3.1 gpm
Inlet to Outlet Length4-3/16 in
MediaWater
SeriesZW3870XLT
Softgoods MaterialFKM Seal/Noryl GFN2 Guide Tube/Acetal Co-Polymer Checks
Temperature Rating120 to 195 deg F Hot Supply/40 to 75 deg F Cold Supply
Top to Inlet Center2-27/32 in
Trim Material300 Stainless Steel Spring

Features

  • Most suitable for use with sensor faucets
  • Designed for single fixture use
  • 3.1 gpm flow rate at 45 psi pressure loss
