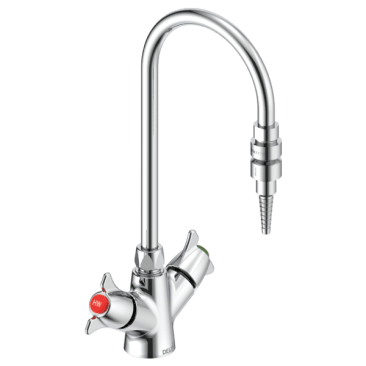

DELTA W6760-9 Image 1

DELTA W6760-9 DECKMNT LAB MIXING FCT SNGL SHANK 1H

MFR Part #: W6760-9
SKU #: 1030215
Brand: DELTA®
UPC: 055870246355
DELTA® W6760-9 Single Shank Mixing Faucet, 4 gpm Flow Rate, Polished Chrome, 2 Handles, Import, Commercial
Commercial Applications
ADA Compliant|ASME A112.18.1|ASSE 1035/1001|CSA B125.1/B64.7/B64.1.1|cCSAus Certified

DELTA® Single Shank Mixing Faucet, 4 gpm Flow Rate, Rigid/Swivel Gooseneck Spout, 6 in Spout Reach, 15.8 in Spout Height, Arm Handle, 2 Handles, 1 Faucet Hole, 3/8 in Connection, Compression Connection, 2 in Maximum Deck Thickness, Deck Mounting, Brass, Polished Chrome, Import, Commercial Commercial/Residential

This deck-mount mixing faucet is for single hole installations with maximum 1-1/2 in. diameter hole size, though 1-1/4 in. diameter is recommended). The all-brass body with vandal resistant anti-rotation locking pins to prevent damage to counter tops can be removed in field if not required. The 12 in. high (unmounted) gooseneck can be installed as a standard rigid or swivel. The Delta Commercial offering goes beyond providing exceptional Commercial-grade performance with products that reflect the personality of the individual institution. All Delta Commercial products are backed by the industry's best 5-year limited warranty.

Product Details

DELTA® Single Shank Mixing Faucet, 4 gpm Flow Rate, Rigid/Swivel Gooseneck Spout, 6 in Spout Reach, 15.8 in Spout Height, Arm Handle, 2 Handles, 1 Faucet Hole, 3/8 in Connection, Compression Connection, 2 in Maximum Deck Thickness, Deck Mounting, Brass, Polished Chrome, Import, Commercial Commercial/Residential

This deck-mount mixing faucet is for single hole installations with maximum 1-1/2 in. diameter hole size, though 1-1/4 in. diameter is recommended). The all-brass body with vandal resistant anti-rotation locking pins to prevent damage to counter tops can be removed in field if not required. The 12 in. high (unmounted) gooseneck can be installed as a standard rigid or swivel. The Delta Commercial offering goes beyond providing exceptional Commercial-grade performance with products that reflect the personality of the individual institution. All Delta Commercial products are backed by the industry's best 5-year limited warranty.

Attributes

Country Of OriginCanada
Mounting TypeDeck
Number of Faucet Holes1
Spout Height15.8 in
Spout Reach6 in
Commercial/ResidentialCommercial
Connection Size3/8 in
Connection TypeCompression
Domestic/ImportImport
Finish/ColorPolished Chrome
Flow Rate4 gpm
Handle TypeArm
MaterialBrass
Maximum Deck Thickness2 in
Number of Handles2
Spout TypeRigid/Swivel Gooseneck

Features

  • All brass body with vandal resistant anti-rotation locking pins to prevent damage to counter top (can be removed in field if not required)
  • Stainless steel flexible braided hoses with 3/8 in compression connections
  • Teck Lab compression structures
  • Chrome plated brass renewable seat
  • Not for use with potable water
  • Assembled shank with brass locknut
  • Field installation of spout as rigid or swivel
