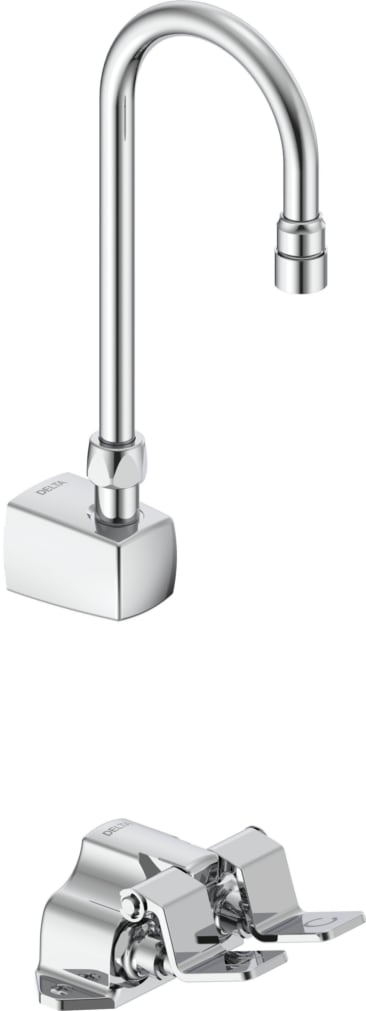

DELTA 54T5422A SURGEONS PEDAL VALVE
MFR Part #:Â 54T5422A
SKU #:Â 0863858
Brand: DELTA®
UPC:Â 055870196469
DELTA® 54T5422A Double-Pedal Surgeon Scrub-Up Valve With Vandal Resistant Locking Lug, 1.5 gpm Flow Rate, Polished Chrome, Import, Commercial
5 Years Limited
Commercial Applications
ASME A112.18.1 | CSA B125.1 | cCSAus Certified | CalGreen | EPA WaterSense® Certified
Product Details
Attributes
Features
DELTA® Surgeon Scrub-Up Valve, Double-Pedal, 1.5 gpm Flow Rate, Rigid/Swivel Gooseneck Spout, 4.5 in Spout Reach, 11.88 in Spout Height, 1 Faucet Hole, 3/8 in Connection, MNPT Connection, Wall Mounting, Brass, Polished Chrome, Import, Commercial Commercial/Residential
Finish/Color:
Polished Chrome
Commercial/Residential:
Commercial
Connection Size:
3/8 in
Connection Type:
MNPT
Domestic/Import:
Import
Flow Rate:
1.5 gpm
Material:
Brass
Mounting Type:
Wall
Number of Faucet Holes:
1
Spout Height:
11.88 in
Spout Reach:
4.5 in
Spout Type:
Rigid/Swivel Gooseneck
Type:
Double-Pedal
- Foot pedal mixing valve
- Spout: R2 - gooseneck spout-4.5 in spout reach -Standard rigid/swivel field installation-vandal resistant .090 in wall thickness(R2)
- Outlet#: 2 - vandal resistant 1.5 gpm (5.7 L/Min) laminar with Agion® antimicrobial
- Wall mount brass turret
- 3/8 in IPS shank and locknut
- Forged brass floor mount self close foot pedal valve
- Two indexed pedals
- Polished chrome plated finish
- No stops
- Set screw wall flanges
Product Details
DELTA® Surgeon Scrub-Up Valve, Double-Pedal, 1.5 gpm Flow Rate, Rigid/Swivel Gooseneck Spout, 4.5 in Spout Reach, 11.88 in Spout Height, 1 Faucet Hole, 3/8 in Connection, MNPT Connection, Wall Mounting, Brass, Polished Chrome, Import, Commercial Commercial/Residential
Attributes
Finish/Color:Â Polished Chrome
Commercial/Residential:Â Commercial
Connection Size:Â 3/8 in
Connection Type:Â MNPT
Domestic/Import:Â Import
Flow Rate:Â 1.5 gpm
Material:Â Brass
Mounting Type:Â Wall
Number of Faucet Holes:Â 1
Spout Height:Â 11.88 in
Spout Reach:Â 4.5 in
Spout Type:Â Rigid/Swivel Gooseneck
Type:Â Double-Pedal
Features
- Foot pedal mixing valve
- Spout: R2 - gooseneck spout-4.5 in spout reach -Standard rigid/swivel field installation-vandal resistant .090 in wall thickness(R2)
- Outlet#: 2 - vandal resistant 1.5 gpm (5.7 L/Min) laminar with Agion® antimicrobial
- Wall mount brass turret
- 3/8 in IPS shank and locknut
- Forged brass floor mount self close foot pedal valve
- Two indexed pedals
- Polished chrome plated finish
- No stops
- Set screw wall flanges
