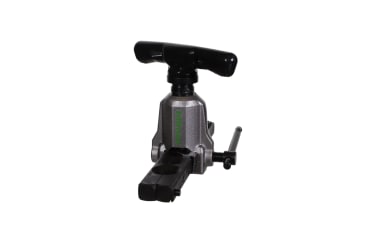

HILMOR 1838952 FTO ORBITAL FLARE 3/16IN TO 3/4IN

MFR Part #: 1838952
SKU #: 1181310
Brand: Hilmor®
UPC: 885363012934
Hilmor® 1838952 Orbital Flare, 45 deg Flare, 3/16 to 3/4 in, 8-1/2 in L, 5.3 in H x 4.6 in W
Limited
For Flaring and Swaging Applications

Hilmor® Orbital Flare, 3/16 to 3/4 in Nominal Capacity, 45 deg Flare Angle, 8-1/2 in Overall Length, 5.3 in Height, 4.6 in Width, Soft Aluminum, Brass, Copper and Steel Material Application, Black/Silver

The Hilmor® Orbital Flare was designed to produce quality flares - again and again. It has an off-center mounted cone that spins on an axis to make sure it uniformly shapes the tube. Plus, it's equipped with the kind of features you need - a spring-loaded block to firmly grip the tube, a tube-stop arrow for precise height and positioning (goodbye, nickel), and ball detents for easy flaring yoke alignment. It even has a clutch mechanism that stops the flaring when the job is done to eliminate cracking the tube.

Product Details

Hilmor® Orbital Flare, 3/16 to 3/4 in Nominal Capacity, 45 deg Flare Angle, 8-1/2 in Overall Length, 5.3 in Height, 4.6 in Width, Soft Aluminum, Brass, Copper and Steel Material Application, Black/Silver

The Hilmor® Orbital Flare was designed to produce quality flares - again and again. It has an off-center mounted cone that spins on an axis to make sure it uniformly shapes the tube. Plus, it's equipped with the kind of features you need - a spring-loaded block to firmly grip the tube, a tube-stop arrow for precise height and positioning (goodbye, nickel), and ball detents for easy flaring yoke alignment. It even has a clutch mechanism that stops the flaring when the job is done to eliminate cracking the tube.

Attributes

Color: Black/Silver
Country Of Origin: TW
Flare Angle: 45 deg
Height: 5.3 in
Material Application: Soft Aluminum, Brass, Copper and Steel
Nominal Capacity: 3/16 to 3/4 in
Overall Length: 8-1/2 in
Width: 4.6 in

Features

  • Precise flares, every time: Off-center mounted cone spins on an axis to effectively produce quality flares
  • No cracked tubes: a clutch mechanism stops the flaring when the job is done
  • Simple setup: a clothespin inspired, spring loaded block grips the tube securely
  • Easy to position: a tube-stop arrow slides to set correct height and positioning, while ball detents allow for easy flaring cone alignment
  • Compatible tube OD 3/16 in, 1/4 in, 5/16 in, 3/8 in, 1/2 in, 5/8 in, 3/4 in
  • Black color handle
