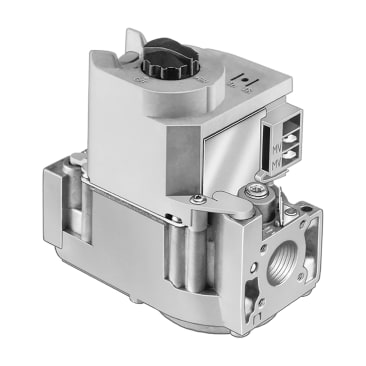

HONEYWELL VR8205M2823T/U GAS CONTROL VALVE FOR LENNOX SYSTEMS
MFR Part #:Â VR8205M2823T/U
SKU #:Â 1180912
Brand:Â Honeywell
UPC:Â 085267461672
Resideo VR8205M2823T/U Standard Opening Dual Automatic Valve Combination Gas Control, 24 VAC, 0.5 A, Direct Ignition, 0.5 psi
Inlet and Outlet Screen, 1-Stage Natural to LP Conversion Kit, Manual Valve, 390427B/U (1) 1/2 x 3/8 in Reducer Bushing, (1) 3/4 in Straight Flange, (2) Automatic Operators and Pressure Regulator
L2025006 American Gas Association Design Certificate | 4214 Australian Gas Association Design Certificate | Approved for Delta C Application | L2025006 Canadian Gas Association Design Certificate | CSA 112395 | UL Listed
Product Details
Attributes
Features
Resources
Resideo Dual Automatic Valve Combination Gas Control, Standard Opening, Series: VR8205, 24 VAC, 0.5 A, Direct Ignition, 0.5 psi, 0 to 175 deg F, Vertical Mount, 4-1/8 in W x 2-11/16 in D
Combination gas controls for use with hot surface/direct spark systems in 24 VAC, gas-fired appliances with capacities from 30 to 415 cfh.
Amperage Rating:
.5 A
Country Of Origin:
Mexico
Dimensions:
4-1/8 in W x 2-11/16 in D
Ignition Type:
Direct
Mounting Type:
Vertical
Pressure Rating:
.5 psi
Series:
VR8205
Temperature Rating:
0 to 175 deg F
Type:
Standard Opening
Voltage Rating:
24 VAC
- Provide two automatic valves
- Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
- Diaphragm-operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted
- Meets codes requiring dual safety shutoff
- All adjustments, wiring connections and pilot outlet are accessible from top of control
- On-off lighting sequence
Product Details
Resideo Dual Automatic Valve Combination Gas Control, Standard Opening, Series: VR8205, 24 VAC, 0.5 A, Direct Ignition, 0.5 psi, 0 to 175 deg F, Vertical Mount, 4-1/8 in W x 2-11/16 in D
Combination gas controls for use with hot surface/direct spark systems in 24 VAC, gas-fired appliances with capacities from 30 to 415 cfh.
Attributes
Amperage Rating:Â .5 A
Country Of Origin:Â Mexico
Dimensions:Â 4-1/8 in W x 2-11/16 in D
Ignition Type:Â Direct
Mounting Type:Â Vertical
Pressure Rating:Â .5 psi
Series:Â VR8205
Temperature Rating:Â 0 to 175 deg F
Type:Â Standard Opening
Voltage Rating:Â 24 VAC
Features
- Provide two automatic valves
- Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
- Diaphragm-operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted
- Meets codes requiring dual safety shutoff
- All adjustments, wiring connections and pilot outlet are accessible from top of control
- On-off lighting sequence
