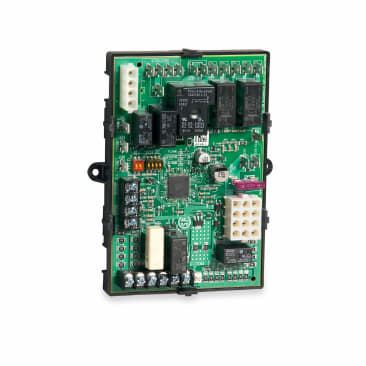

HONEYWELL S9200U1000/U UNIVERSAL HSI INTEGRATD FURNACE CONTROL
Product Details
Attributes
Features
Resources
Resideo Integrated Furnace Control, Hot Surface Ignition, 120 VAC, 17/27, 30/30 s Igniter Warm-Up Time, 30 s Prepurge, 5.6 in Width, 7.6 in D, 3-1/2 in Height, Import
Universal Integrated Furnace Control offers universal compatibility and diagnostics. It replaces a large number of furnace control models in single-stage warm air furnaces. Uses 120VAC hot surface igniter. Includes instructions and special wire harnesses for easy replacement.
- For 120 VAC (up to 5 A) surface igniter (Norton 201/271 or equivalent)
- S8910U 3000 series has LED status indicator and microammeter ports for easy trouble shooting
- For local (single rod) or remote (dual rod) rectification type flame sensing
- Contains easy-to-use cross reference and instructions plus the accessories required to replace the existing hot surface ignition module
- Provides one or three ignition trials (four-second or seven-second trials) per call for heat
- Field selectable number of ignition trials and trial time based on unit being replaced
- Igniter warm up time: 7 (12 sec and third trial), 17 (27 sec and third trial), 34 or 45 sec
- 24 V control at 60 Hz
- Replaces over 800 White Rodgers, Robertshaw and Resideo or Honeywell hot surface ignition model
