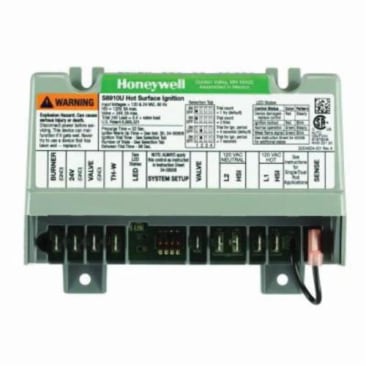

HONEYWELL S8910U1000 HSI MODULE 24V 120V HS ELEMENT
MFR Part #: S8910U1000/U
SKU #: 1002837
Brand: Honeywell
UPC: 085267141246
Honeywell S8910U1000/U Universal Hot Surface Ignition Module, 24 VAC, 2 A, 24 VAC Control, 32 s Prepurge
Product Details
Attributes
Features
Resources
Honeywell Hot Surface Ignition Module, Universal, 24 VAC, 2 A, 24 VAC, 32 s Prepurge
Universal hot surface ignition module replaces multiple field installed hot surface ignition modules supplied by Honeywell, White-Rodgers, Robertshaw and Johnson. Uses a 120 VAC igniter. Includes cross reference, instructions and accessories for easy replacement.
Amperage Rating:
2 A
Control Voltage:
24 VAC
Prepurge Time:
32 s
Type:
Universal
Voltage Rating:
24 VAC
- Replaces over 800 White-Rodgers, Robertshaw® and Honeywell® hot surface ignition models
- For 120 VAC (up to 5 A) surface igniter (Norton 201/271 or equivalent)
- S8910U 3000 series has LED status indicator and microammeter ports for easy trouble shooting
- For local (single rod) or remote (dual rod) rectification type flame sensing
- Contains easy-to-use cross reference and instructions plus the accessories required to replace the existing hot surface ignition module
- Provides one or three ignition trials (four-second or seven-second trials) per call for heat
- Field selectable number of ignition trials and trial time based on unit being replaced
- Igniter warm up time: 7 (12 sec and third trial), 17 (27 sec and third trial), 34 or 45 sec
- 24 V control at 60 Hz
Product Details
Honeywell Hot Surface Ignition Module, Universal, 24 VAC, 2 A, 24 VAC, 32 s Prepurge
Universal hot surface ignition module replaces multiple field installed hot surface ignition modules supplied by Honeywell, White-Rodgers, Robertshaw and Johnson. Uses a 120 VAC igniter. Includes cross reference, instructions and accessories for easy replacement.
Attributes
Amperage Rating: 2 A
Control Voltage: 24 VAC
Prepurge Time: 32 s
Type: Universal
Voltage Rating: 24 VAC
Features
- Replaces over 800 White-Rodgers, Robertshaw® and Honeywell® hot surface ignition models
- For 120 VAC (up to 5 A) surface igniter (Norton 201/271 or equivalent)
- S8910U 3000 series has LED status indicator and microammeter ports for easy trouble shooting
- For local (single rod) or remote (dual rod) rectification type flame sensing
- Contains easy-to-use cross reference and instructions plus the accessories required to replace the existing hot surface ignition module
- Provides one or three ignition trials (four-second or seven-second trials) per call for heat
- Field selectable number of ignition trials and trial time based on unit being replaced
- Igniter warm up time: 7 (12 sec and third trial), 17 (27 sec and third trial), 34 or 45 sec
- 24 V control at 60 Hz
