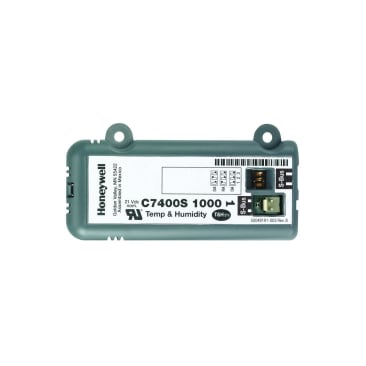

HONEYWELL C7400S1000 TEMPERATURE & HUMIDITY SENSOR
MFR Part #: C7400S1000/U
SKU #: 1091599
Brand: Honeywell
UPC: 085267920940
Honeywell C7400S1000/U S-Bus Enthalpy Sensor, -40 to 150 deg F, 10 to 90% Humidity, Import
UL Listed
Product Details
Attributes
Features
Resources
Honeywell Enthalpy Sensor, S-Bus, Series: C7400, -40 to 150 deg F, 10 to 90 % Humidity, Terminal Blocks, Gray, 4.25 in H x 2.17 in W x 0.81 in D, Import
Digital enthalpy (humidity/temperature) sensor for use with S-Bus devices and W7220 economizer controller.
Color:
Gray
Country Of Origin:
Mexico
Dimensions:
4.25 in H x 2.17 in W x 0.81 in D
Domestic/Import:
Import
Electrical Connections:
Terminal Blocks
Humidity Range:
10 to 90 %
Series:
C7400
Temperature Rating:
-40 to 150 deg F
Type:
S-Bus
- This unit mounted C7400S enthalpy sensor includes solid state temperature and humidity sensors
- Outputs a digital communicating signal on a two wire Syllabus communications link, reporting the temperature and humidity separately to the controller
- The controller determines the enthalpy (total heat), enabling economizer modes of operation when outside air enthalpy is suitable for free cooling
- Enthalpy sensors are compatible with Honeywell® economizer systems
- When used with an economizer, the enthalpy boundary curve is programmed via the controller
- When the temperature and humidity are determined to be suitable based on the relationship to the boundary, the controller allows outside air for economizing
- Ambient temperature operating range from -40 to 150 deg F
- Dual enthalpy sensors in outside air and return switches the controllers to economizer mode of operation anytime the outside enthalpy is less than the return air enthalpy
- Used with W7220
- 2-pin header-pin style or 2-pin card edge removable terminal blocks
Product Details
Honeywell Enthalpy Sensor, S-Bus, Series: C7400, -40 to 150 deg F, 10 to 90 % Humidity, Terminal Blocks, Gray, 4.25 in H x 2.17 in W x 0.81 in D, Import
Digital enthalpy (humidity/temperature) sensor for use with S-Bus devices and W7220 economizer controller.
Attributes
Color: Gray
Country Of Origin: Mexico
Dimensions: 4.25 in H x 2.17 in W x 0.81 in D
Domestic/Import: Import
Electrical Connections: Terminal Blocks
Humidity Range: 10 to 90 %
Series: C7400
Temperature Rating: -40 to 150 deg F
Type: S-Bus
Features
- This unit mounted C7400S enthalpy sensor includes solid state temperature and humidity sensors
- Outputs a digital communicating signal on a two wire Syllabus communications link, reporting the temperature and humidity separately to the controller
- The controller determines the enthalpy (total heat), enabling economizer modes of operation when outside air enthalpy is suitable for free cooling
- Enthalpy sensors are compatible with Honeywell® economizer systems
- When used with an economizer, the enthalpy boundary curve is programmed via the controller
- When the temperature and humidity are determined to be suitable based on the relationship to the boundary, the controller allows outside air for economizing
- Ambient temperature operating range from -40 to 150 deg F
- Dual enthalpy sensors in outside air and return switches the controllers to economizer mode of operation anytime the outside enthalpy is less than the return air enthalpy
- Used with W7220
- 2-pin header-pin style or 2-pin card edge removable terminal blocks
