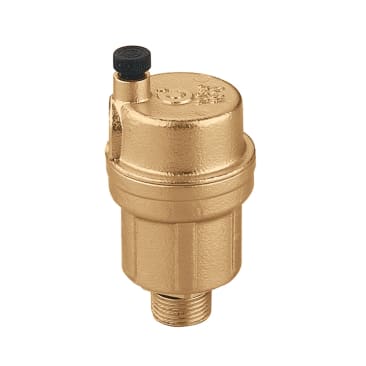

CALEFFI 502610A AUTOMATIC AIR VENT 1/8IN NPT MALE
MFR Part #:Â 502610A
SKU #:Â 1081860
Brand:Â Caleffi
UPC:Â 8016615068580
Caleffi 502610A Automatic Air Vent, 1/8 in, MNPT, 150 psi Max, 240 deg F, Brass
ANAB Accredited ISO 9001|BSI FM 21654|SICIM ISO 9001 No. 0003
Product Details
Attributes
Features
Resources
Caleffi Automatic Air Vent, Series: 5026, 1/8 in Nominal, MNPT, 150 psi Max Working, 240 deg F, Brass, 1-9/16 in L x 3-1/16 in H
These automatic air vents eliminate residual air in heating and air conditioning systems without the need for manual intervention. This prevents undesired noise, wear of devices in the circuits and inefficient performance of heating units.
Connection Type:
MNPT
Dimensions:
1-9/16 in L x 3-1/16 in H
Material:
Brass
Nominal Size:
1/8 in
Series:
5026
Temperature Rating:
240 deg F
Working Pressure:
150 psi Max
- 90 psi max discharge pressure
- 1.75 scfm max discharge rate
Product Details
Caleffi Automatic Air Vent, Series: 5026, 1/8 in Nominal, MNPT, 150 psi Max Working, 240 deg F, Brass, 1-9/16 in L x 3-1/16 in H
These automatic air vents eliminate residual air in heating and air conditioning systems without the need for manual intervention. This prevents undesired noise, wear of devices in the circuits and inefficient performance of heating units.
Attributes
Connection Type:Â MNPT
Dimensions:Â 1-9/16 in L x 3-1/16 in H
Material:Â Brass
Nominal Size:Â 1/8 in
Series:Â 5026
Temperature Rating:Â 240 deg F
Working Pressure:Â 150 psi Max
Features
- 90 psi max discharge pressure
- 1.75 scfm max discharge rate
