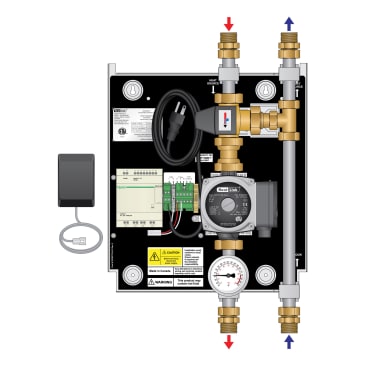

HEATLINK TMP040 3-WAY MIXING PANEL
Product Details
Attributes
Features
Resources
HeatLink® Mixing Panel, Series: TMP, 110 to 140 deg F Control, 40 MBtu/hr Boiler Output, 1.5 A Full Load, Terminal Strip Electrical Connections, Steel, Powder Coated, 12-1/2 in W x 6-1/2 in D x 14-3/4 in H Dimensions, Import
The TMP 3-Way Mixing Panel's primary application is as a single zone mixing device where there are no flow requirements in the primary loop. Intended to be used with DHW tanks as a heat source, the PLC is programmed with a 24 hr timer for potable applications. When not used with a DHW tank as a heat source, secondary zoning downstream of the panel is possible.
- These panels can also be used as subpanels to provide additional mixed temperature loops
Product Details
HeatLink® Mixing Panel, Series: TMP, 110 to 140 deg F Control, 40 MBtu/hr Boiler Output, 1.5 A Full Load, Terminal Strip Electrical Connections, Steel, Powder Coated, 12-1/2 in W x 6-1/2 in D x 14-3/4 in H Dimensions, Import
The TMP 3-Way Mixing Panel's primary application is as a single zone mixing device where there are no flow requirements in the primary loop. Intended to be used with DHW tanks as a heat source, the PLC is programmed with a 24 hr timer for potable applications. When not used with a DHW tank as a heat source, secondary zoning downstream of the panel is possible.
Attributes
Features
- These panels can also be used as subpanels to provide additional mixed temperature loops
