CALEFFI ZVR106 6 ZONE VALVE CONTROL
Product Details
Attributes
Features
Resources

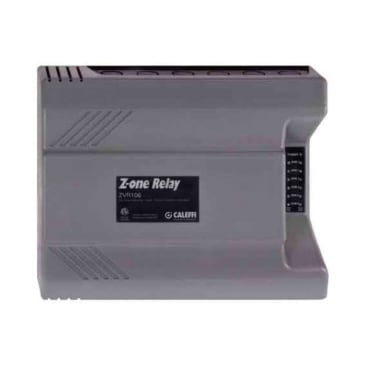

Caleffi Z-one™ Zone Valve Relay, 6 Zone, Series: ZVR, 24 VAC, 120 VAC, 50/60 Hz, LED, 11 in L x 3 in W x 9-1/4 in H
The ZVR series is a zone valve and boiler operating control for multiple zone hydronic heating systems. The ZVR series interfaces with low voltage thermostats, or any other low voltage controllers having a switching action. The ZVR series controls up to 6 zone valves, depending on model selected. In addition, a system pump and secondary pump is turned on whenever any zone calls for heat. A DHW primary pump can also be operated. LED indicators provide functional status and easy system troubleshooting.
- Installer friendly - Ample room for terminations, large screw terminals, automatic resettable fuse, snap-in transformers
- Application versatility - 3 selectable 120 VAC auxiliary switches for enabling pumps and boilers, dedicated pump outputs, unlimited zone expansion
- Extremely reliable design - Clutch-protected drive train, durable synchronous motor, millions installed in North America
- Compact design with snap-on actuator with a convenient in-line push button, removable bottom cap allows for easy in-pipe service
- Application versatility - Hot water, chilled water and low-pressure steam
- Compatible with 2, 3 and 4-wire thermostats or other low voltage controllers with switching action
- Heavy duty, sealed relays
- 3 pump outputs (120 VAC/5 A) and 3 to 6 (model dependent) zone valve outputs (24 V)
- Zone priority selectable with 1 hr time-out feature
- Convenient R, W, C and T, T, COM dual labeling at thermostat terminals
- System pump status (on/off) during priority selectable
- Dry contacts (XX,AUX, ZONE 1 E/S) capable of switching line voltage
- Replaceable, snap-fit 40 VA transformer on 3 and 4 zone models, expandable to 80 VA with 2nd transformer
- Two replaceable, snap-fit 40 VA transformers (80 VA) on 6 zone models
- Automatic resettable fuse on 24 V circuit
- Expandable to unlimited number of zones using simple 3-wire connection between controls
- Large screw terminals for ease of wiring on-board ground terminals
- Front panel LED indicator light for functional status
