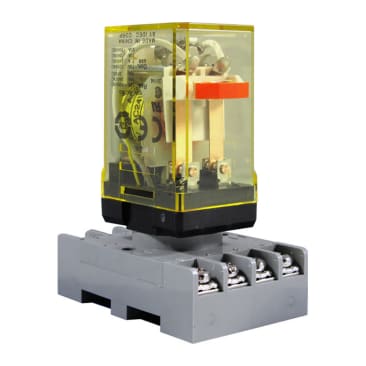

TEKMAR 004 RELAY - 120VAC COIL
Product Details
Attributes
Features
Resources
Tekmar® Relay, 120 VAC, 50/60 Hz, 1-9/16 in W x 2-3/8 in D x 3 in H, Import
The Relay 004 is a 120 VAC coil DPDT (double pole double throw) relay that is used to isolate electrical loads and allow higher current ratings than the on board relays found on Tekmar® controls. It can be used in applications ranging from doubling the capability of a single output (e.g. energize a pump as well as provide a boiler demand from one output) to allowing a pump to be used that draws more than the control's specified relay rating. The 004 relay uses a 120 VAC coil that once energized, closes 2 normally open contacts and opens 2 normally closed contacts.
- Double pole double throw relay (DPDT)
- Isolate electrical loads
- Easy to replace ("ice cube" style - no need to remove wiring)
- LED to indicate when energized
- Test tab for easy test and manual override
- Relay contacts (max.) - 10 A resistive at 250 VAC NO, NC, 10 A resistive at 30 VDC NO, NC, 7 A inductive at 250 VAC
- Relay contacts (min) - 10 mA 1 VDC
Product Details
Tekmar® Relay, 120 VAC, 50/60 Hz, 1-9/16 in W x 2-3/8 in D x 3 in H, Import
The Relay 004 is a 120 VAC coil DPDT (double pole double throw) relay that is used to isolate electrical loads and allow higher current ratings than the on board relays found on Tekmar® controls. It can be used in applications ranging from doubling the capability of a single output (e.g. energize a pump as well as provide a boiler demand from one output) to allowing a pump to be used that draws more than the control's specified relay rating. The 004 relay uses a 120 VAC coil that once energized, closes 2 normally open contacts and opens 2 normally closed contacts.
Attributes
Features
- Double pole double throw relay (DPDT)
- Isolate electrical loads
- Easy to replace ("ice cube" style - no need to remove wiring)
- LED to indicate when energized
- Test tab for easy test and manual override
- Relay contacts (max.) - 10 A resistive at 250 VAC NO, NC, 10 A resistive at 30 VDC NO, NC, 7 A inductive at 250 VAC
- Relay contacts (min) - 10 mA 1 VDC
