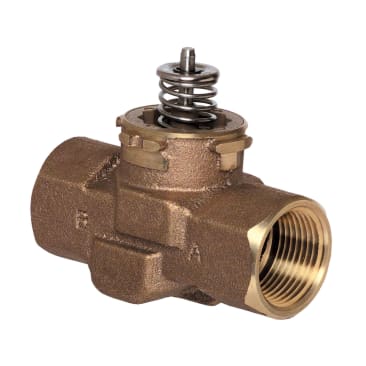

HONEYWELL VCZAR1100/U 1 NPT 2-WAY ZONE VALVE
Product Details
Attributes
Features
Resources
Honeywell Home Cartridge Cage Valve, 2-Way Straight-Through, 1 in Nominal Size, FNPT, 300 psi Safe Operating, 34 to 203 deg F Fluid, Bronze Body, Stainless Steel Stem Trim, EPDM O-Ring Seals/EPDM Rubber Packing, 4-7/16 in H x 3-11/16 in W, Import
Two-way Cartridge Cage Valves are intended for hydronic applications in a normal indoor environment to control flow of hot/chilled water glycol solution up to 60% concentration. These valves are designed for zone control of heating/cooling systems.
- High close-off rating independent of Cv
- No tools required for actuator installation or removal
- Cartridge replacement rebuilds valve to factory-new condition
- Used with VC6830/VC6831/VC6834; VC6930/VC6931/VC6934; VC7930/VC7931/VC7934 actuators
- Timing: When used with VC series actuator - 2 min
- Ambient temperature range: 32 to 150 deg F
- 60 psi maximum differential pressure rating (close-off)
- Capacity: 3.9 Cv
- Valve action: Stem up to close A port
- Controlled fluid: Chilled or hot water with up to 60 Percent glycol
- Ryton™, Noryl™ engineering plastic cartridge
- Actuation: Proportional non-fail safe, purchase separately
- Characterized cartridge for use with non-fail safe floating and modulating actuators
- Quick open, linear, and equal percentage flow characteristics available
- 1000 series valves for two-position control
