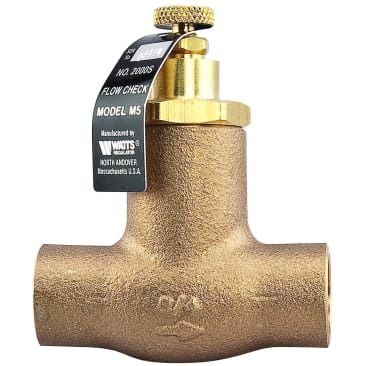

WATTS 0856763 2000S-M5 3/4 BRONZE FLOW CHECK
Product Details
Attributes
Features
Resources
WATTS®, 0856763, Flow Check, 2-Way Straight, Series: 2000S-M5, 3/4 in Nominal, Socket End Style, 50 psi Pressure, 3 in Inlet to Outlet Length, Bronze Body, 3-5/8 in H Dimensions, Domestic
This 3/4 inch two-way straight pattern universal flow check valve is for use in commercial and residential hydronic heating systems to provide positive shutoff when circulator is not running, preventing the flow of water to radiation units. It is easily opened for gravity circulation. It combines angle and horizontal checks and consists of an iron body construction with solder end connections, bronze seat, and brass center guide. The maximum pressure is 50 psi (344.8kPa).
- Provides positive gravity shutoff when circulator is not running
- Checks easily opened for gravity circulation
- Brass center guide
- Iron body construction
- Solder inlet and outlet connections
Product Details
WATTS®, 0856763, Flow Check, 2-Way Straight, Series: 2000S-M5, 3/4 in Nominal, Socket End Style, 50 psi Pressure, 3 in Inlet to Outlet Length, Bronze Body, 3-5/8 in H Dimensions, Domestic
This 3/4 inch two-way straight pattern universal flow check valve is for use in commercial and residential hydronic heating systems to provide positive shutoff when circulator is not running, preventing the flow of water to radiation units. It is easily opened for gravity circulation. It combines angle and horizontal checks and consists of an iron body construction with solder end connections, bronze seat, and brass center guide. The maximum pressure is 50 psi (344.8kPa).
Attributes
Features
- Provides positive gravity shutoff when circulator is not running
- Checks easily opened for gravity circulation
- Brass center guide
- Iron body construction
- Solder inlet and outlet connections
