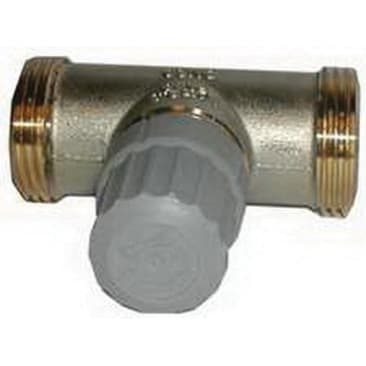

DANFOSS 013G8042 1/2 CXC RA2000 STRT RAD VALVE
MFR Part #: 013G8042
SKU #: 0498775
Brand: Danfoss
UPC: 5702420011530
Danfoss RA 2000 Series 013G8042 Thermostatic Radiator Straight Valve Body, 1/2 in, Solder Union, Brass, Nickel-Plated
For residential, commercial and industrial applications
Product Details
Attributes
Features
Resources
Danfoss Thermostatic Radiator Straight Valve Body, RA 2000 Series, 1/2 in Nominal, Solder Union Connection, 10 lb/sq-in Working, 0.6 bar Differential, 16 bar Test, 1.6 Cv Flow Coefficient (Cv), Brass, Nickel-Plated, Hot Water Service, 45 to 86 deg F, 3-15/16 in H
Dimensions:
3-15/16 in H
Finish:
Nickel-Plated
Nominal Size:
1/2 in
Pressure Rating:
10 lb/sq-in Working, 0.6 bar Differential, 16 bar Test
Series:
RA 2000 Series
Temperature Rating:
45 to 86 deg F
Connection Type:
Solder Union
Flow Coefficient (Cv):
1.6 Cv
Material:
Brass
Service Type:
Hot Water
- Valve bodies are designed to meet the demands of the residential, commercial and industrial sectors
- Thermostatic radiator valves regulate the flow of hot water or low pressure steam through free-standing radiators, baseboards or convectors in hot water and two pipe steam systems
- Valves are fitted with a packing gland assembly that is replaceable while the system is in operation
- EPDM rubber valve disc provides a seal against the valve seat at differential pressures of upto 15 lbf/sq-in in hot water heating systems, while 15 lbf/sq-in for low pressure steam systems
- Manual plastic cap supplied to protect the valve pushpin and provide manual control of the valve during installation
- Valves remain normally open with no operator-mounted
- Brass bonnet, spindle, nickel-plated brass tailpiece, union nut, EPDM disc, packing O-ring, stainless steel spring
Product Details
Danfoss Thermostatic Radiator Straight Valve Body, RA 2000 Series, 1/2 in Nominal, Solder Union Connection, 10 lb/sq-in Working, 0.6 bar Differential, 16 bar Test, 1.6 Cv Flow Coefficient (Cv), Brass, Nickel-Plated, Hot Water Service, 45 to 86 deg F, 3-15/16 in H
Attributes
Dimensions: 3-15/16 in H
Finish: Nickel-Plated
Nominal Size: 1/2 in
Pressure Rating: 10 lb/sq-in Working, 0.6 bar Differential, 16 bar Test
Series: RA 2000 Series
Temperature Rating: 45 to 86 deg F
Connection Type: Solder Union
Flow Coefficient (Cv): 1.6 Cv
Material: Brass
Service Type: Hot Water
Features
- Valve bodies are designed to meet the demands of the residential, commercial and industrial sectors
- Thermostatic radiator valves regulate the flow of hot water or low pressure steam through free-standing radiators, baseboards or convectors in hot water and two pipe steam systems
- Valves are fitted with a packing gland assembly that is replaceable while the system is in operation
- EPDM rubber valve disc provides a seal against the valve seat at differential pressures of upto 15 lbf/sq-in in hot water heating systems, while 15 lbf/sq-in for low pressure steam systems
- Manual plastic cap supplied to protect the valve pushpin and provide manual control of the valve during installation
- Valves remain normally open with no operator-mounted
- Brass bonnet, spindle, nickel-plated brass tailpiece, union nut, EPDM disc, packing O-ring, stainless steel spring
