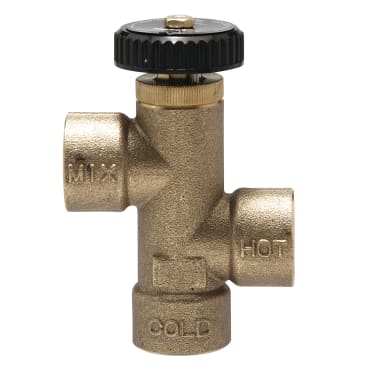

WATTS 0559130 LF70AT 1/2 IP 120-160F MIXING VALVE

MFR Part #: 0559130
SKU #: 1107388
Brand: WATTS®
UPC: 098268451887
WATTS® 0559130 LF70A Hot Water Extender Tempering Valve, 1/2 in Nominal, Thread End Style, 150 psi Pressure, 2 gpm Flow Rate, Brass Body, Domestic
Limited
Commercial, Residential, Small Domestic Water Supply Systems recommended for Tankless Heater, Water Heater and Solar Installations

WATTS®, 0559130, Hot Water Extender Tempering Valve, Series: LF70A, 1/2 in Nominal, Thread End Style, 150 psi Pressure, 120 to 160 deg F, 2 gpm Flow Rate, Media: Water, Brass Body, Stainless Steel Trim, 2-7/16 in L x 3-7/8 in H Dimensions, Domestic

This 1/2 in hot water extender tempering valve is designed for domestic water supply systems and recommended for tankless heater, water heater and solar applications installed at or near the boiler or hot water heater. It consists of a lead free brass body, threaded connections, thermostat, stainless steel springs and dial adjustment cap. The hydraulically operated thermostat opens a spring loaded check in the cold water inlet which allows cold and hot water to mix and can be replaced as a unit. The temperature range is 120 to 160 deg F.

Product Details

WATTS®, 0559130, Hot Water Extender Tempering Valve, Series: LF70A, 1/2 in Nominal, Thread End Style, 150 psi Pressure, 120 to 160 deg F, 2 gpm Flow Rate, Media: Water, Brass Body, Stainless Steel Trim, 2-7/16 in L x 3-7/8 in H Dimensions, Domestic

This 1/2 in hot water extender tempering valve is designed for domestic water supply systems and recommended for tankless heater, water heater and solar applications installed at or near the boiler or hot water heater. It consists of a lead free brass body, threaded connections, thermostat, stainless steel springs and dial adjustment cap. The hydraulically operated thermostat opens a spring loaded check in the cold water inlet which allows cold and hot water to mix and can be replaced as a unit. The temperature range is 120 to 160 deg F.

Attributes

Body Material: Brass
Dimensions: 2-7/16 in L x 3-7/8 in H
Domestic/Import: Domestic
End Style: Thread
Flow Rate: 2 gpm
Media: Water
Nominal Size: 1/2 in
Pressure Rating: 150 psi
Series: LF70A
Temperature Rating: 120 to 160 deg F
Trim Material: Stainless Steel

Features

  • Simple maintenance thermostat assembly is easily removed and replaceable as a unit
  • Finger tip dial adjustment cap
  • Thread connections
  • Lead free brass body construction

Resources

302e177b8cf2069bae6b8e3174cd6f71fc312efa_1079.pdf
c574795ec106cf96888e0bc0e7bad4ece9adf250_1079.pdf
Catalog
Instruction/Installation Manual
Specification Sheet
