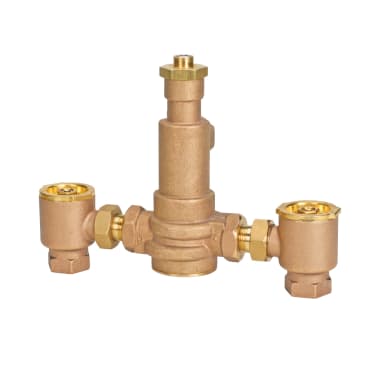

WATTS 0559168 LFN170-M3 CSUT 1 90-180F MIXING VALVE WITH CHECK STOP

WATTS®, 0559168, Master Tempering Valve With Check Stop, Series: LFN170, 1 x 3/4 in Nominal, NPT End Style, 125 psi Pressure, 5 to 200 deg F, 4 gpm Flow Rate, Media: Water, Brass Body, 12-9/16 in L Dimensions, Domestic

The LFN170 CSUT Lead Free* Master Tempering Valve Series is designed for use in commercial and institutional applications, to mix hot and cold water to reduce high service water temperature to the building distribution piping system. The LFN170 CSUT series is designed for installation at the hot water source. It features Lead Free* brass body construction, a copper/paraffin thermostat assembly and a lockable temperature adjustment for increased safety. Polysulfone internals resist excessive heat, liming and corrosion, and a single-seat design ensures tight shut-off in the event of cold water supply loss. Three-in-one check stops prevent cross flow, isolate valve for maintenance and integral screens filter out debris. The LFN170 CSUT is listed to ASSE 1017 and IAPMO cUPC in compliance with CSA B125.3. Temperature range is 90 to 180 deg F (32 to 82 deg C). Maximum pressure is 125 psi.
