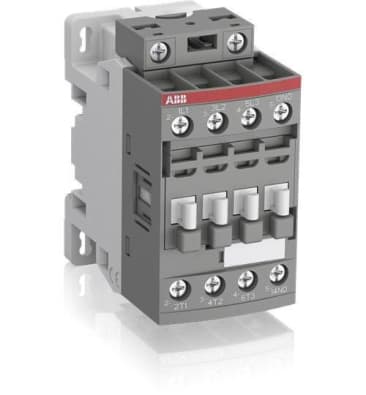

ABB AF09-30-10-13 CONTACTOR 3 POLE 7.5HP 600VAC
Product Details
Attributes
Features
Resources
ABB Contactor, Series: AF09, 100 VAC, 250 VDC Coil, 25 A Maximum Load Current, 3 Pole, 50/60 Hz Frequency, 5.5 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO Auxiliary Contacts, 690 VAC Contact, Screw Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -60 to 80 deg C Operating, DIN Rail Mounting, 86 mm H x 45 mm W x 77 mm D Dimensions
AF technology as standard, AF contactors establish a new industry benchmark. The electronically controlled coil offers multiple benefits over conventional alternatives and together with ABB wide product offering, an optimal configuration, every time.
- Non-reversing across the line contactor
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- AC or DC operated with electronic coil interface accepting a wide control voltage range, only 4 control voltage ranges covering 24 to 500 VAC, 50/60 Hz and 20 to 500 VDC can manage large control voltage variations
Product Details
ABB Contactor, Series: AF09, 100 VAC, 250 VDC Coil, 25 A Maximum Load Current, 3 Pole, 50/60 Hz Frequency, 5.5 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO Auxiliary Contacts, 690 VAC Contact, Screw Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -60 to 80 deg C Operating, DIN Rail Mounting, 86 mm H x 45 mm W x 77 mm D Dimensions
AF technology as standard, AF contactors establish a new industry benchmark. The electronically controlled coil offers multiple benefits over conventional alternatives and together with ABB wide product offering, an optimal configuration, every time.
Attributes
Features
- Non-reversing across the line contactor
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- AC or DC operated with electronic coil interface accepting a wide control voltage range, only 4 control voltage ranges covering 24 to 500 VAC, 50/60 Hz and 20 to 500 VDC can manage large control voltage variations
