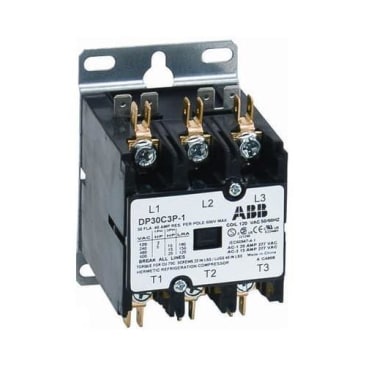

ABB DP30C3P-1 DEF PURPOSE CONT NON-REV 30A 3P 120V COIL
MFR Part #:Â DP30C3P-1
SKU #:Â 1039651
Brand:Â ABB
UPC:Â 662019747484
ABB DP30C3P-1 Definite Purpose Contactor, 120 VAC V Coil, 30 A, 3NO Contact, 3 Poles
Motors, Power Supplies, Food Service Equipment, Compressors, Business Machines, Resistive Heating, Air Conditioning, Refrigeration Equipment and Welding
UL 508, Guide No. NLDX2, NLDX8, File No. E224401, C22.2 No. 221260, Class 3211 04/3211 84 | CE/Semko Certified | EN60947-4-1:2001
Product Details
Attributes
Features
ABB Definite Purpose Contactor, 120 VAC Coil, 30 A Maximum Load Current, 6/7.5/60/65 VA Coil Power Rating, 3 Poles, 50/60 Hz, Non-Reversing Contact, 3NO, 1NO-1NC Auxiliary Contacts, 600 VAC Contact, SZ 30, Screw Terminal, NEMA 5/Open, 130 deg C Operating, DIN Rail Mount, 3.75 in H x 2.41 in W x 2.98 in D
Coil Power Rating:
6/7.5/60/65 VA
Coil Voltage:
120 VAC
Contact Configuration:
3NO
Contact Rating:
600 VAC
Contact Type:
Non-Reversing
Country Of Origin:
France
Dimensions:
3.75 in H x 2.41 in W x 2.98 in D
Enclosure Type:
NEMA 5/Open
Frequency Rating:
50/60 Hz
Maximum Load Current:
30 A
Mounting Type:
DIN Rail
Number of Auxiliary Contacts:
1NO-1NC
Number of Poles:
3
Operating Temperature:
130 deg C
Size:
SZ 30
Terminal Type:
Screw
- Industry standard mounting plate with easy access mounting holes
- Coil terminals are provided with #6-32 screws and (1) 0.25 quick connect or dual 0.25 quick connect terminals
- Exclusive hex, slotted, Phillips 10 to 32 AWG terminal screws for main terminals
- Coil is class B insulation system with a wide range of voltages and 50/60 Hz ratings
- Double E-magnet assembly provides optimal performance with reduced power consumption
- Base assembly is made from high arc-resistant polyester
- Designed for HVAC and refrigeration equipment operation and control
- 65/60 VA inrush, 7.5/6 VA closed coil power rating
Product Details
ABB Definite Purpose Contactor, 120 VAC Coil, 30 A Maximum Load Current, 6/7.5/60/65 VA Coil Power Rating, 3 Poles, 50/60 Hz, Non-Reversing Contact, 3NO, 1NO-1NC Auxiliary Contacts, 600 VAC Contact, SZ 30, Screw Terminal, NEMA 5/Open, 130 deg C Operating, DIN Rail Mount, 3.75 in H x 2.41 in W x 2.98 in D
Attributes
Coil Power Rating:Â 6/7.5/60/65 VA
Coil Voltage:Â 120 VAC
Contact Configuration:Â 3NO
Contact Rating:Â 600 VAC
Contact Type:Â Non-Reversing
Country Of Origin:Â France
Dimensions:Â 3.75 in H x 2.41 in W x 2.98 in D
Enclosure Type:Â NEMA 5/Open
Frequency Rating:Â 50/60 Hz
Maximum Load Current:Â 30 A
Mounting Type:Â DIN Rail
Number of Auxiliary Contacts:Â 1NO-1NC
Number of Poles:Â 3
Operating Temperature:Â 130 deg C
Size:Â SZ 30
Terminal Type:Â Screw
Features
- Industry standard mounting plate with easy access mounting holes
- Coil terminals are provided with #6-32 screws and (1) 0.25 quick connect or dual 0.25 quick connect terminals
- Exclusive hex, slotted, Phillips 10 to 32 AWG terminal screws for main terminals
- Coil is class B insulation system with a wide range of voltages and 50/60 Hz ratings
- Double E-magnet assembly provides optimal performance with reduced power consumption
- Base assembly is made from high arc-resistant polyester
- Designed for HVAC and refrigeration equipment operation and control
- 65/60 VA inrush, 7.5/6 VA closed coil power rating
